Description

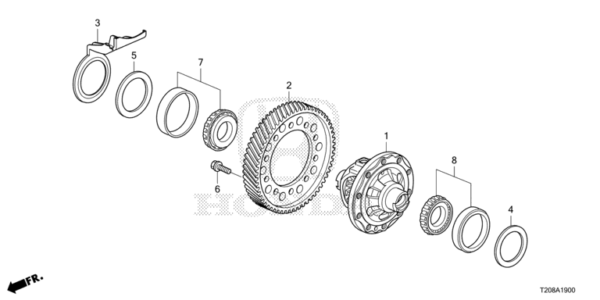

ATM-19 DIFFERENTIAL (RH) (2)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
| 1 | 41100-5T0-901 | DIFFERENTIAL COMP. | Differential Carrier | 001 |
| 2 | 41233-63C-000 | GEAR, FINAL DRIVEN | Final Driven Gear | 001 |
| 3 | 41381-63C-000 | PLATE C, OIL GUIDE | Oil Guide Plate | 001 |
| 4 | 41382-63C-000 | SPACER, 41X69X1.4 | Spacer | 001 |
| 5 | 41411-63C-000 | SHIM A, 72MM (1.075) | Thrust Shim | 001 |
| 5 | 41412-63C-000 | SHIM B, 72MM (1.1) | Thrust Shim | 001 |
| 5 | 41413-63C-000 | SHIM C, 72MM (1.125) | Thrust Shim | 001 |
| 5 | 41414-63C-000 | SHIM D, 72MM (1.15) | Thrust Shim | 001 |
| 5 | 41415-63C-000 | SHIM E, 72MM (1.175) | Thrust Shim | 001 |
| 5 | 41416-63C-000 | SHIM F, 72MM (1.2) | Thrust Shim | 001 |
| 5 | 41417-63C-000 | SHIM G, 72MM (1.225) | Thrust Shim | 001 |
| 5 | 41418-63C-000 | SHIM H, 72MM (1.25) | Thrust Shim | 001 |
| 5 | 41419-63C-000 | SHIM I, 72MM (1.275) | Thrust Shim | 001 |
| 5 | 41420-63C-000 | SHIM J, 72MM (1.3) | Thrust Shim | 001 |
| 5 | 41421-63C-000 | SHIM K, 72MM (1.325) | Thrust Shim | 001 |
| 5 | 41422-63C-000 | SHIM L, 72MM (1.35) | Thrust Shim | 001 |
| 5 | 41423-63C-000 | SHIM M, 72MM (1.375) | Thrust Shim | 001 |
| 5 | 41424-63C-000 | SHIM N, 72MM (1.4) | Thrust Shim | 001 |
| 5 | 41425-63C-000 | SHIM O, 72MM (1.425) | Thrust Shim | 001 |
| 5 | 41426-63C-000 | SHIM P, 72MM (1.45) | Thrust Shim | 001 |
| 5 | 41427-63C-000 | SHIM Q, 72MM (1.475) | Thrust Shim | 001 |
| 5 | 41428-63C-000 | SHIM R, 72MM (1.5) | Thrust Shim | 001 |
| 5 | 41429-63C-000 | SHIM S, 72MM (1.525) | Thrust Shim | 001 |
| 5 | 41430-63C-000 | SHIM T, 72MM (1.55) | Thrust Shim | 001 |
| 5 | 41431-63C-000 | SHIM U, 72MM (1.575) | Thrust Shim | 001 |
| 5 | 41432-63C-000 | SHIM V, 72MM (1.6) | Thrust Shim | 001 |
| 5 | 41433-63C-000 | SHIM W, 72MM (1.625) | Thrust Shim | 001 |
| 5 | 41434-63C-000 | SHIM X, 72MM (1.65) | Thrust Shim | 001 |
| 5 | 41435-63C-000 | SHIM Y, 72MM (1.675) | Thrust Shim | 001 |
| 5 | 41436-63C-000 | SHIM Z, 72MM (1.7) | Thrust Shim | 001 |
| 5 | 41437-63C-000 | SHIM 0A, 72MM (1.725) | Thrust Shim | 001 |
| 6 | 90003-PA9-003 | BOLT, FLANGE, 10MM | 010 | |
| 7 | 91104-63C-003 | BEARING, SPECIAL TAPER, 40X72X17 | Needle Bearing | 001 |
| 8 | 91107-63C-003 | BEARING, SPECIAL TAPER, 40X69X15.8 | Needle Bearing | 001 |
