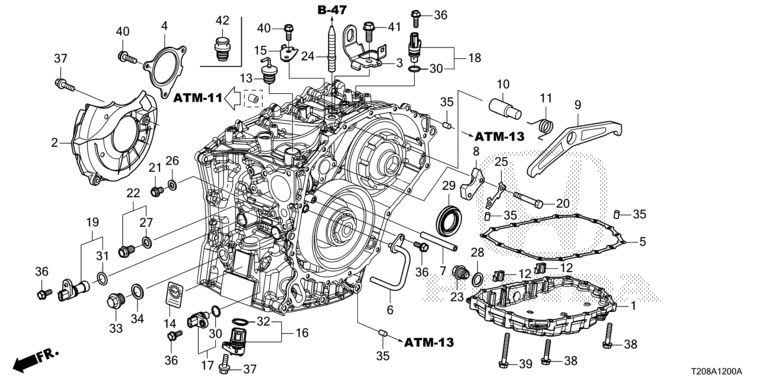

ATM-12 TRANSMISSION CASE COMPONENTS (RH) (2)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 21151-R3W-000 | PAN, OIL | Transmission Fluid Pan | 001 |
| 2 | 21220-63C-000 | PLATE COMP., BAFFLE | Baffle Plate | 001 |
| 3 | 21232-5DJ-000 | HANGER COMP., TRANSMISSION | Transmission Hanger | 001 |
| 4 | 21317-63C-000 | PLATE, PULLEY BEARING SETTING (B) | Bearing Set Plate | 001 |
| 5 | 21814-5T0-000 | PACKING, OIL PAN | 001 | |
| 6 | 22750-5T0-000 | PIPE COMP., COOLER | Cooler Pipe | 001 |
| 7 | 22751-RDK-010 | PIPE, 8X52.2 | 8 x 52.2 mm Pipe | 001 |
| 8 | 24543-5T0-003 | HOLDER, PARKING BRAKE ROD | Parking Brake Rod Holder | 001 |
| 9 | 24561-5T0-000 | PAWL, PARKING BRAKE | Parking Brake Pawl | 001 |
| 10 | 24562-PN0-000 | SHAFT, PARKING | Parking Shaft | 001 |
| 11 | 24563-5T0-000 | SPRING, PARKING PAWL | Parking Pawl Spring | 001 |
| 12 | 25422-RJ2-003 | MAGNET ASSY., TRANSMISSION | Magnet | 002 |
| 13 | 25615-5DL-003 | CAP, ATF FILLER (A) (CVT) | Filler Cap | 001 |
| 14 | 25619-5DJ-000 | LABEL, OIL INFORMATION | 001 | |
| 15 | 28157-65D-000 | STAY COMP., HARNESS | 001 | |
| 16 | 28361-5T0-003 | COUPLER, WATER PROOF (8P 040M) | Solenoid Wire Harness Connector | 001 |
| 17 | 28810-5RG-004 | PICK UP ASSY. | CVT Drive Pulley Speed Sensor | 001 |
| 18 | 28820-5DJ-004 | PICK UP ASSY. | CVT Speed Sensor | 001 |
| 19 | 28820-RJ2-003 | PICK UP ASSY. | Torque Converter Turbine Speed Sensor | 001 |
| 20 | 90001-PY4-003 | BOLT, HEX., 6MM | 002 | |
| 21 | 90024-612-000 | BOLT, SEALING, 8MM | Sealing Bolt | 001 |
| 22 | 90030-RT4-003 | BOLT, SEALING, 10MM | Sealing Bolt | 001 |
| 23 | 90081-5T0-003 | BOLT, PLUG, 18MM | Drain Plug | 001 |
| 24 | 90380-TV1-E00 | BOLT, STUD, 12X88.8 | 001 | |
| 25 | 90448-P4V-010 | WASHER, TONGUED, 6MM | 001 | |
| 26 | 90471-580-000 | PACKING, 8MM | 001 | |
| 27 | 90471-59C-000 | PACKING, 10MM (AL-PACKING) | 001 | |
| 28 | 90471-PX4-000 | WASHER, DRAIN PLUG, 18MM | 001 | |
| 29 | 91206-5T0-004 | OIL SEAL, 35X55X8 (ARAI) | Left Differential Oil Seal/Left Differential Oil Seal | 001 |
| 30 | 91301-5DJ-003 | O-RING | 002 | |
| 31 | 91309-PX4-003 | O-RING, 16X2.1 (NOK) | 001 | |
| 32 | 91329-PRP-003 | O-RING, 23.3X2.4 | 001 | |
| 33 | 92800-20000 | BOLT, DRAIN PLUG, 20MM | Filler Plug | 001 |
| 34 | 94109-20000 | WASHER, DRAIN PLUG, 20MM | 001 | |
| 35 | 94301-08140 | DOWEL PIN, 8X14 | 004 | |
| 36 | 95701-06016-08 | BOLT, FLANGE, 6X16 | Oil Check Bolt | 004 |
| 37 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 003 | |
| 38 | 95701-06030-08 | BOLT, FLANGE, 6X30 | 008 | |
| 39 | 95701-06045-08 | BOLT, FLANGE, 6X45 | 009 | |
| 40 | 95701-08020-08 | BOLT, FLANGE, 8X20 | 004 | |
