Description

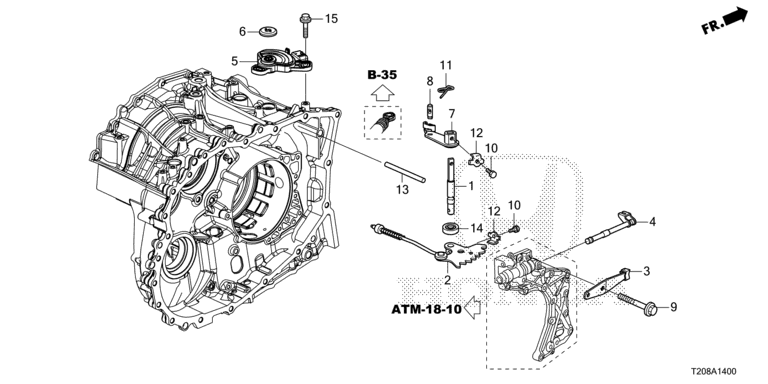

| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 24411-5T0-000 | SHAFT, CONTROL | Control Shaft | 001 |
| 2 | 24420-5T0-000 | LEVER COMP., DETENT | Detent Lever | 001 |
| 3 | 24620-5T0-000 | SPRING ASSY., DETENT | Detent Spring | 001 |
| 4 | 27420-63C-000 | VALVE COMP., MANUAL | Manual Valve | 001 |
| 5 | 28900-R9L-004 | SENSOR ASSY., POSITION | Transmission Range Switch | 001 |
| 6 | 28905-R9L-000 | CAP, POSITION SENSOR | Control Shaft Cover | 001 |
| 7 | 54313-T5A-951 | LEVER COMP., CONTROL | Control Lever | 001 |
| 8 | 54314-SZW-950 | PIN, CONTROL WIRE | Control Pin | 001 |
| 9 | 90001-5T0-000 | BOLT, SPECIAL, 6X28 | 002 | |
| 10 | 90001-PA9-000 | BOLT, HEX., 6MM | 002 | |
| 11 | 90175-SEL-T81 | PIN, LOCK, 8MM | Lock Pin | 001 |
| 12 | 90433-639-000 | WASHER, LOCK, 6MM | 002 | |
| 13 | 90703-5T0-000 | ROLLER, 5X70 | Roller | 001 |
| 14 | 91209-612-003 | OIL SEAL, 12X22X7 (ARAI) | Control Shaft Oil Seal | 001 |
| 15 | 95701-06018-08 | BOLT, FLANGE, 6X18 | 002 |
