Description

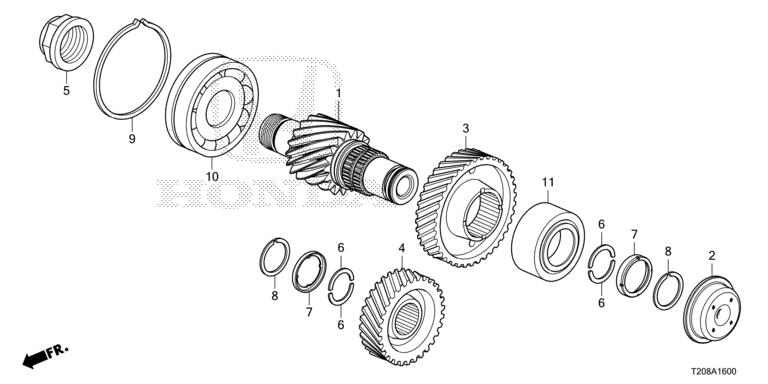

ATM-16 FINAL DRIVE SHAFT (RH) (2)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
| 1 | 23221-63C-000 | SHAFT, FINAL DRIVE | Final Drive Shaft | 001 |
| 2 | 23225-63C-000 | PLATE B, OIL GUIDE | Oil Guide Plate | 001 |
| 3 | 23232-63C-000 | GEAR, SECONDARY DRIVEN | Secondary Driven Gear | 001 |
| 4 | 23241-63C-000 | GEAR, SECONDARY DRIVE | Secondary Drive Gear | 001 |
| 5 | 90201-63C-000 | NUT, FLANGE, 28MM | 001 | |
| 6 | 90430-P4V-000 | COTTER, 25.5 (B) (3.0) | Cotter | 004 |
| 7 | 90435-63C-000 | RETAINER, COTTER | Cotter Retainer | 002 |
| 8 | 90611-P4V-000 | CIRCLIP, EXTERNAL, 29MM | Snap Ring | 002 |
| 9 | 90615-63C-000 | RING, SNAP, 83MM | Snap Ring | 001 |
| 10 | 91102-63C-006 | BEARING, BALL, 28X83X22.5 | Final Drive Shaft Bearing (Torque Converter Housing Side) | 001 |
| 11 | 91103-63C-003 | BEARING, NEEDLE, 29X60X20.5 | Needle Bearing | 001 |
