Description

Ref No.	Parts No.	Parts Name	Parts Name(S/M)	Unit Qty
1	38562-663-920	JOINT B, WASHER TUBE (MITSUBA)		001
2	76802-TF0-003	CAP UNIT, MOUTH		001
3	76806-T6G-003	MOTOR, WASHER	Windshield/Rear Window Washer Motor	001
4	76809-SZ3-A01	SEAL, PACKING		001
5	76812-3N1-K01	HOSE	Washer Reservoir Filler Neck	001
6	76813-TY2-A01	TUBE, CORRUGATE		001
7	76821-SYV-A01	TUBE, CORRUGATE		002
8	76823-T7A-003	TUBE SUB ASSY.		001
9	76825-TGG-A01	GROMMET, WASHER TUBE		002
10	76828-S2K-J11	JOINT L, TUBE		004
11	76829-SM4-003	JOINT I, WASHER		006
12	76833-TME-T01	TUBE, 90MM		001
13	76837-T7A-G01	TUBE, 410MM		001
14	76839-3M0-003	TUBE, 690MM		001
15	76841-3N1-003	TANK SET, WASHER (2.5L FR.-RR.)	Washer Reservoir	001
16	76842-S2K-J11	BUSH, WASHER TANK		001
17	76852-3M0-003	TUBE, 1580MM		001
18	76852-S6A-003	GROMMET, WASHER TUBE (RR.)		001
19	76852-TF0-003	JOINT L, WASHER		001
20	76856-3M0-003	TUBE, 1570MM		001
21	76857-3M0-003	TUBE, 840MM		001
22	76897-3N1-K01	TUBE, 1460MM		001
23	76893-3M0-003	TUBE, 210MM		001
24	90652-S2A-003	CLIP, TUBE, 7MM (BLACK)		003
26	90653-T5A-T01	CLIP, WASHER TUBE (SEAL)		001
27	90676-TF0-003	CLIP, WASHER TUBE		008
28	91512-SX0-003	CLIP, INNER FENDER		001
29	91902-S3N-003	PLASTER, WIRE HARNESS (50X50) (SHIMIZU)		003
30	93405-06016-08	BOLT-WASHER, 6X16		003
31	91531-3N1-003	CLIP, WIRE HARNESS		001

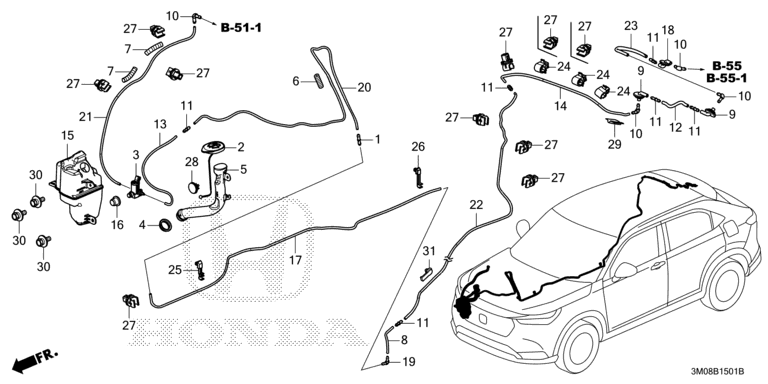

Windshield Washer
