Description

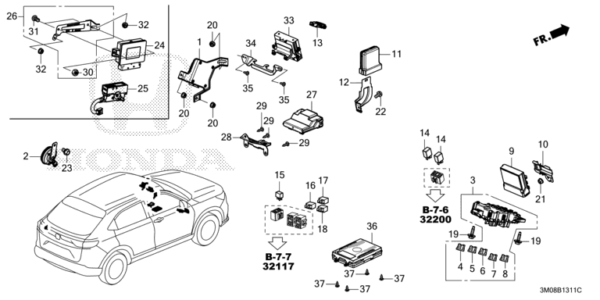

B-13-11 CONTROL UNIT (CABIN) (1) (RH)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 2 | 38150-3M0-G51 | HORN ASSY., SECURITY | Security Horn | 001 |
| 3 | 38200-3M0-J11 | BOX ASSY., FUSE | Under-Dash Fuse/Relay Box | 001 |
| 4 | 38221-SNA-A31 | FUSE, BLADE (7.5A) | 004 | |
| 5 | 38221-SNA-A41 | FUSE, BLADE (10A) | 017 | |
| 6 | 38221-SNA-A51 | FUSE, BLADE (15A) | 002 | |
| 7 | 38221-SNA-A61 | FUSE, BLADE (20A) | 008 | |
| 8 | 38221-TZ3-A01 | FUSE, BLADE (5A) | 002 | |
| 9 | 38850-3M0-T02 | SEMICONDUCTOR, RELAY MODULE | Relay Control Module | 001 |
| 10 | 38851-3M0-000 | BRACKET, SEMICONDUCTOR RELAY MODULE | 001 | |
| 11 | 38890-3M0-T21 | MANAGEMENT UNIT, INTEGRATED (REWRITABLE) | CAN Gateway/CAN Gateway | 001 |
| 12 | 38891-3M0-000 | BRACKET, INTEGRATED MANAGEMENT UNIT | 001 | |
| 14 | 39794-S10-003 | RELAY ASSY., POWER (5P) (MICRO ISO) (MITSUBA) (WASHER) | WINDSHIELD WASHER MOTOR RELAY (5P)/REAR WINDOW WASHER MOTOR RELAY (5P) | 002 |
| 15 | 39794-SDA-A02 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (HEATER MOTOR) | HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/FRONT FOG LIGHT RELAY (4P)/POWER WINDOW RELAY (4P)/INJECTOR RELAY (4P)/BLOWER MOTOR RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY (4P)/SECURITY HORN RELAY (4P)/FRONT ACCESSORY POWER SOCKET RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/BLOWER MOTOR RELAY (4P)/INJECTOR RELAY (4P)/HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/FRONT FOG LIGHT RELAY (4P)/POWER WINDOW RELAY (4P)/INJECTOR RELAY (4P)/BLOWER MOTOR RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY (4P)/SECURITY HORN RELAY (4P)/FRONT ACCESSORY POWER SOCKET RELAY (4P) | 001 |
| 19 | 90137-SF1-000 | BOLT-WASHER, 6X25 | 002 | |
| 21 | 90361-SV4-003 | NUT, PAINT CUTTING, 6MM | 001 | |
| 22 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 001 | |
| 23 | 95701-08012-08 | BOLT, FLANGE, 8X12 | 001 | |
| 36 | 06370-T20-X03 | CHARGER UNIT, WIRELESS (SERVICE) | Wireless Charger | 001 |
| 37 | 93913-14220 | SCREW, TAPPING, 4X12 | 004 |
