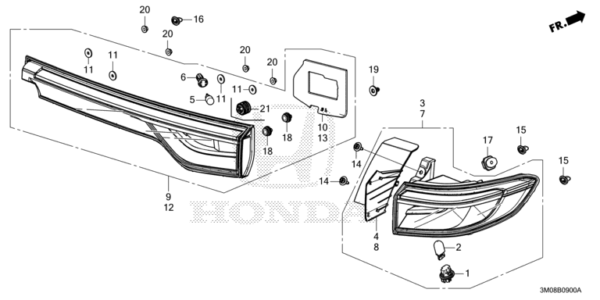

B-9 TAILLIGHT (1)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 33302-S7A-003 | SOCKET COMP. (T20 S) | 002 | |
| 2 | 33303-SCK-003 | BULB, WEDGE (12V 21W) (AMBER) (KOITO) | Rear Turn Signal Light Bulb | 002 |
| 3 | 33500-3M0-J01 | TAILLIGHT ASSY., R. | Taillight/Taillight | 001 |
| 4 | 33501-3M0-J01 | BEZEL, R. | Bezel Cover | 001 |
| 5 | 33506-S8R-N51 | BULB (T16) (12V 16W) (KOITO) | Back-Up Light Bulb | 002 |
| 6 | 33513-S2A-003 | SOCKET COMP. (T10) | 002 | |
| 7 | 33550-3M0-J01 | TAILLIGHT ASSY., L. | Taillight/Taillight | 001 |
| 8 | 33551-3M0-J01 | BEZEL, L. | Bezel Cover | 001 |
| 9 | 34150-3M0-J02 | LIGHT ASSY., R. LID | Inner Taillight/Inner Taillight | 001 |
| 10 | 34152-3M0-J02 | GASKET, R. BASE | 001 | |
| 11 | 34154-TC4-H01 | PACKING | 008 | |
| 12 | 34155-3M0-J02 | LIGHT ASSY., L. LID | Inner Taillight/Inner Taillight | 001 |
| 13 | 34157-3M0-J02 | GASKET, L. BASE | 001 | |
| 14 | 90001-S10-010 | BOLT-WASHER, 5X16 | 004 | |
| 15 | 90650-SEY-901 | GROMMET, RR. COMBINATION LIGHT (DARK GRAY) | 004 | |
| 16 | 90650-SZT-003 | GROMMET, RR. COMBINATION LIGHT (LIGHT GRAY) | 002 | |
| 17 | 90650-TX6-A01 | CLIP, RR. COMBINATION LIGHT | 002 | |
| 18 | 91560-SLA-003 | CLIP, GARNISH (SEAL) | 004 | |
| 19 | 91626-TX6-A01 | GROMMET, TAILLIGHT | 002 | |
| 20 | 94050-05080 | NUT, FLANGE, 5MM | 008 |
