Description

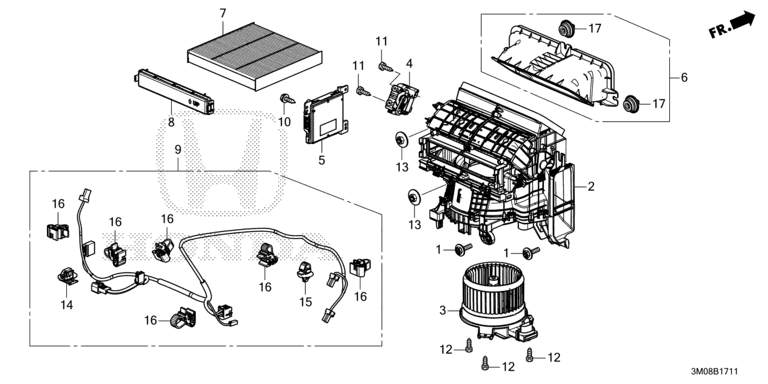

B-17-11 HEATER BLOWER (RH)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 79121-TG1-T01 | SCREW-WASHER, 6X20 | 003 | |
| 2 | 79305-TZA-J01 | BLOWER SUB ASSY. | Blower Unit | 001 |
| 3 | 79310-3N0-J51 | MOTOR ASSY., FAN | Blower Motor | 001 |
| 4 | 79350-T02-T01 | MOTOR ASSY., FRESH & RECIRCULAR | Recirculation Control Motor | 001 |
| 5 | 79600-3N7-P81 | CONTROL UNIT, AIR CONDITIONER ELECTRONIC | Climate Control Unit | 001 |
| 6 | 79810-3M0-N00 | DUCT ASSY., INTAKE | Intake Duct | 001 |
| 7 | 80291-T7M-H01 | ELEMENT, FILTER | Dust and Pollen Filter | 001 |
| 8 | 80292-TF0-003 | LID, BLOWER | Lid | 001 |
| 9 | 80650-3M0-J00 | SUB HARNESS, AIR CONDITIONER | A/C WIRE HARNESS | 001 |
| 10 | 90111-T02-000 | SCREW, TAPPING, 4X16 (PO) | 002 | |
| 11 | 90127-S84-003 | SCREW, TAPPING, 4X16 | 002 | |
| 12 | 90132-SR3-003 | SCREW, TAPPING, 5X16 | 003 | |
| 13 | 90321-TAA-000 | NUT-WASHER, 6MM (PAINT CUTTING) | 003 | |
| 14 | 91533-STK-003 | CLIP, COUPLER (NATURAL) | 001 | |
| 15 | 91540-TA0-003 | CLIP, HARNESS BAND (NATURAL) (100.1MM) | 001 | |
| 16 | 91549-TA0-003 | CLIP, HARNESS BAND (BLACK) (140.3MM) | 006 | |
| 17 | 91560-TG1-T01 | CLIP, GARNISH (APPLE GREEN) (SEAL) | 003 |
