Description

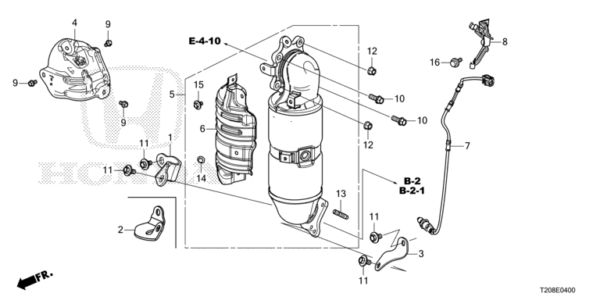

E-4 CONVERTER
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 11941-5AA-A00 | STAY, CONVERTER (R.) | Converter Bracket | 001 |
| 3 | 11942-5AA-A00 | STAY, CONVERTER (L.) | Converter Bracket | 001 |
| 4 | 18120-6A0-P00 | COVER COMP., EX. | Exhaust Cover | 001 |
| 5 | 18150-64A-K10 | CONVERTER ASSY. | Three Way Catalytic Converter (TWC) | 001 |
| 6 | 18181-59B-000 | COVER COMP., CONVERTER | Three Way Catalytic Converter (TWC) Cover | 001 |
| 7 | 36532-64A-A01 | SENSOR, OXYGEN | Secondary Heated Oxygen Sensor (Secondary HO2S) (Sensor 2) | 001 |
| 8 | 36533-64A-A00 | STAY COMP. A, SENSOR HARNESS | 001 | |
| 9 | 90002-59B-000 | BOLT, FLANGE, 8X14 | 003 | |
| 10 | 90004-59B-003 | BOLT, FLANGE, 10X30 | 002 | |
| 11 | 90005-P0A-000 | BOLT-WASHER, 10X22 | 004 | |
| 12 | 90012-59B-004 | NUT, SELF-LOCK, 10MM | 002 | |
| 13 | 90065-PG6-000 | BOLT, STUD, 10X24 | 003 | |
| 14 | 93404-06012-05 | BOLT-WASHER, 6X12 | 004 | |
| 15 | 93404-08016-05 | BOLT-WASHER, 8X16 | 001 | |
| 16 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 001 |
