Description

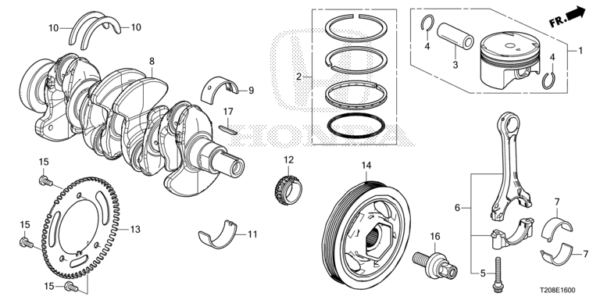

E-16 CRANKSHAFT/PISTON
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 13010-5PA-A00 | PISTON SET (STD.) | Piston | 004 |
| 2 | 13011-59B-014 | RING SET, PISTON (STD.) (RIKEN) | 004 | |
| 3 | 13111-RNA-A00 | PIN, PISTON | Piston Pin | 004 |
| 4 | 13115-RNA-A00 | CLIP, PISTON PIN | Snap Ring | 008 |
| 5 | 13204-PWA-003 | BOLT, CONNECTING ROD | 008 | |
| 6 | 13210-64A-A00 | ROD COMP., CONNECTING | Connecting Rod / Connecting Rod Cap | 004 |
| 7 | 13211-64A-A01 | BEARING A, CONNECTING ROD (BLUE) (DAIDO) | Connecting Rod Bearing | 008 |
| 7 | 13212-64A-A01 | BEARING B, CONNECTING ROD (BLACK) (DAIDO) | Connecting Rod Bearing | 008 |
| 7 | 13213-64A-A01 | BEARING C, CONNECTING ROD (BROWN) (DAIDO) | Connecting Rod Bearing | 008 |
| 7 | 13214-64A-A01 | BEARING D, CONNECTING ROD (GREEN) (DAIDO) | Connecting Rod Bearing | 008 |
| 7 | 13215-64A-A01 | BEARING E, CONNECTING ROD (YELLOW) (DAIDO) | Connecting Rod Bearing | 008 |
| 7 | 13216-64A-A01 | BEARING F, CONNECTING ROD (PINK) (DAIDO) | Connecting Rod Bearing | 008 |
| 7 | 13217-64A-A01 | BEARING G, CONNECTING ROD (RED) (DAIDO) | Connecting Rod Bearing | 008 |
| 8 | 13310-64A-A00 | CRANKSHAFT COMP. | Crankshaft | 001 |
| 9 | 13321-6A0-A01 | BEARING A, MAIN UPPER (BLUE) (TAIHO) | Main Bearing | 005 |
| 9 | 13322-6A0-A01 | BEARING B, MAIN UPPER (BLACK) (TAIHO) | Main Bearing | 005 |
| 9 | 13323-6A0-A01 | BEARING C, MAIN UPPER (BROWN) (TAIHO) | Main Bearing | 005 |
| 9 | 13324-6A0-A01 | BEARING D, MAIN UPPER (GREEN) (TAIHO) | Main Bearing | 005 |
| 9 | 13325-6A0-A01 | BEARING E, MAIN UPPER (YELLOW) (TAIHO) | Main Bearing | 005 |
| 9 | 13326-6A0-A01 | BEARING F, MAIN UPPER (PINK) (TAIHO) | Main Bearing | 005 |
| 9 | 13327-6A0-A01 | BEARING G, MAIN UPPER (RED) (TAIHO) | Main Bearing | 005 |
| 10 | 13331-59B-004 | WASHER, THRUST | Thrust Washer | 002 |
| 11 | 13341-6A0-A01 | BEARING A, MAIN LOWER (BLUE) (TAIHO) | Main Bearing | 005 |
| 11 | 13342-6A0-A01 | BEARING B, MAIN LOWER (BLACK) (TAIHO) | Main Bearing | 005 |
| 11 | 13343-6A0-A01 | BEARING C, MAIN LOWER (BROWN) (TAIHO) | Main Bearing | 005 |
| 11 | 13344-6A0-A01 | BEARING D, MAIN LOWER (GREEN) (TAIHO) | Main Bearing | 005 |
| 11 | 13345-6A0-A01 | BEARING E, MAIN LOWER (YELLOW) (TAIHO) | Main Bearing | 005 |
| 11 | 13346-6A0-A01 | BEARING F, MAIN LOWER (PINK) (TAIHO) | Main Bearing | 005 |
| 11 | 13347-6A0-A01 | BEARING G, MAIN LOWER (RED) (TAIHO) | Main Bearing | 005 |
| 12 | 13621-6A0-A01 | SPROCKET, CAM CHAIN DRIVE (23T) | Cam Chain Drive Sprocket | 001 |
| 13 | 13623-5AN-A00 | PLATE, CRANK PULSER | CKP Pulse Plate | 001 |
| 14 | 13810-64A-A01 | PULLEY COMP., CRANKSHAFT | Crankshaft Pulley | 001 |
| 15 | 90013-R70-A01 | BOLT, SPECIAL, 8X11 | 003 | |
| 16 | 90017-PCX-013 | BOLT-WASHER, 16X49 | 001 | |
| 17 | 90704-5R0-000 | KEY, SPECIAL | Key | 001 |
