Description

Ref No.	Parts No.	Parts Name	Parts Name(S/M)	Unit Qty
1	16010-5PA-305	INJECTOR SET, FUEL		001
2	16011-5AA-305	PIPE COMP., FUEL		001
3	16012-59B-315	PIPE SET, FUEL JOINT		001
4	16451-5R1-J01	CLIP, INJECTOR	Injector Clip	004
5	16453-5R1-J00	SEAL SET, INJECTOR		001
6	16626-64A-A00	BRACKET, FUEL PIPE	Fuel Rail Bracket	001
7	16627-64A-A01	INSULATOR COMP., FUEL PIPE	Fuel Rail Insulator	001
8	16628-64A-A00	BRACKET, JOINT PIPE	Joint Pipe Bracket	001
10	16705-5R1-J01	WASHER, SEALING, 12MM		002
11	16729-64A-A01	INSULATOR COMP., FUEL JOINT PIPE		001
12	16790-59B-003	PUMP ASSY., FUEL HIGH PRESSURE	High Pressure Fuel Pump	001
15	16791-64A-A01	COVER, FUEL HIGH PRESSURE PUMP	High Pressure Fuel Pump Cover	001
16	16792-59B-000	PIPE SET, FUEL FEED		001
19	90020-5R1-J01	BOLT, 12MM		001
21	90130-5R1-000	BOLT, FLANGE SOCKET, 8X22		002
22	91307-5R1-J01	O-RING, 5.95X3.45		004
23	91308-5R1-J01	SEAL (KEIHIN)		004
24	91309-5R1-J01	RING, BACK UP	Back-Up Ring	004
26	91311-5R1-J01	O-RING		001
27	94050-06080	NUT, FLANGE, 6MM		002
28	95701-06012-08	BOLT, FLANGE, 6X12		001
29	95701-06085-08	BOLT, FLANGE, 6X85		002
30	95701-10030-08	BOLT, FLANGE, 10X30		001
31	90041-5J6-A00	BOLT, STUD, 6X18		002
32	95701-06018-08	BOLT, FLANGE, 6X18		006

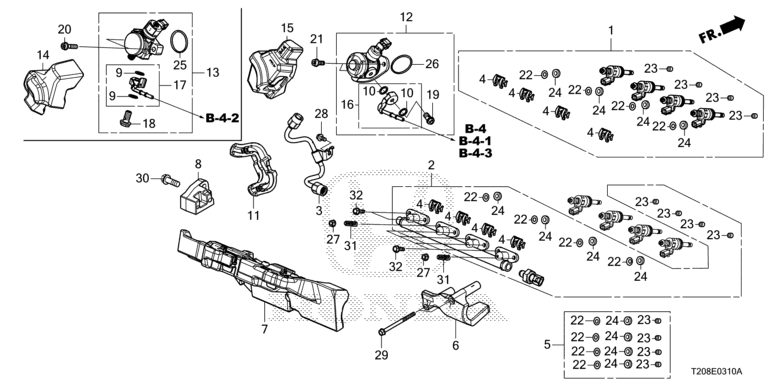

Fuel Injector
