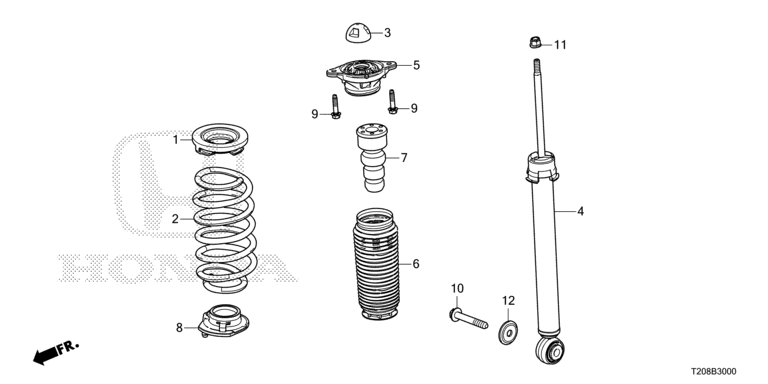

B-30 REAR SHOCK ABSORBER
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 52402-TEA-T02 | RUBBER, RR. SPRING UPPER MOUNTING | Upper Rubber Mount | 002 |
| 2 | 52441-T24-X01 | SPRING, RR. | Rear Spring | 002 |
| 3 | 52608-TBA-A02 | CAP, RR. SHOCK ABSORBER MOUNT | Damper Cap | 002 |
| 4 | 52611-T24-X04 | ABSORBER UNIT, RR. SHOCK | Damper Unit | 002 |
| 5 | 52670-TVA-A02 | RUBBER COMP., RR. SHOCK ABSORBER MOUNTING | Damper Mounting Base | 002 |
| 6 | 52688-T20-A01 | SLEEVE, RR. DUST COVER | Dust Cover | 002 |
| 7 | 52722-TET-H01 | RUBBER, RR. BUMP STOPPER | Bump Stop | 002 |
| 8 | 52748-TBA-A01 | RUBBER, RR. SPRING MOUNTING LOWER | Lower Rubber Mount | 002 |
| 9 | 90123-TBA-A00 | BOLT, FLANGE, 8X32 | 004 | |
| 10 | 90177-TBA-A00 | BOLT, FLANGE, 12X80 | 002 | |
| 11 | 90365-TBA-A00 | NUT, SELF-LOCK, 10MM (NYLON) | 002 | |
| 12 | 90520-TBA-A00 | WASHER, SHOCK ABSORBER LOWER | 002 |
