Description

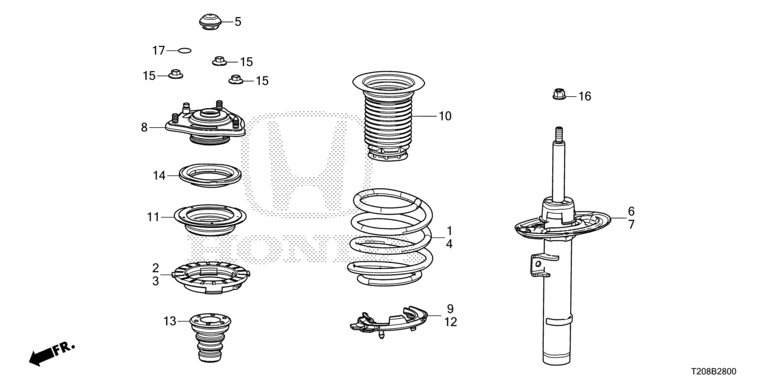

B-28 FRONT SHOCK ABSORBER
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 51401-T24-T12 | SPRING, R. FR. | Damper Spring/Damper Spring/Damper Spring | 001 |
| 2 | 51402-TEX-R01 | RUBBER, R. FR. SPRING MOUNT UPPER | Upper Spring Seat Rubber | 001 |
| 3 | 51403-TEX-R01 | RUBBER, L. FR. SPRING MOUNT UPPER | Upper Spring Seat Rubber | 001 |
| 4 | 51406-T24-T12 | SPRING, L. FR. | Damper Spring/Damper Spring/Damper Spring | 001 |
| 5 | 51608-TBA-A01 | CAP, FR. SHOCK ABSORBER MOUNTING | Damper Cap | 002 |
| 6 | 51611-T24-X03 | ABSORBER UNIT, R. FR. SHOCK | Damper Unit | 001 |
| 7 | 51621-T24-X03 | ABSORBER UNIT, L. FR. SHOCK | Damper Unit | 001 |
| 8 | 51670-TEA-T01 | RUBBER COMP., FR. SHOCK ABSORBER MOUNTING | Damper Mounting Base | 002 |
| 9 | 51684-T24-T01 | RUBBER, R. FR. SPRING MOUNT LOWER | Lower Spring Seat Rubber | 001 |
| 10 | 51686-T20-A01 | COVER, DUST | Dust Cover | 002 |
| 11 | 51688-TVA-A00 | SEAT COMP., FR. SPRING UPPER | Upper Spring Seat | 002 |
| 12 | 51694-T24-T01 | RUBBER, L. FR. SPRING MOUNT LOWER | Lower Spring Seat Rubber | 001 |
| 13 | 51722-TBA-A04 | RUBBER, FR. BUMP STOPPER | Bump Stop | 002 |
| 14 | 51726-T20-A01 | BEARING, FR. SHOCK ABSORBER MOUNT | Damper Mounting Bearing | 002 |
| 15 | 90002-T2A-A00 | NUT, FLANGE, 10MM | 006 | |
| 16 | 90213-TBA-A00 | NUT, SELF-LOCK, 12MM (NYLON) | 002 | |
| 17 | 91607-T0T-000 | SEAL, HOLE, 25MM (SERVICE) | (2) |
