Description

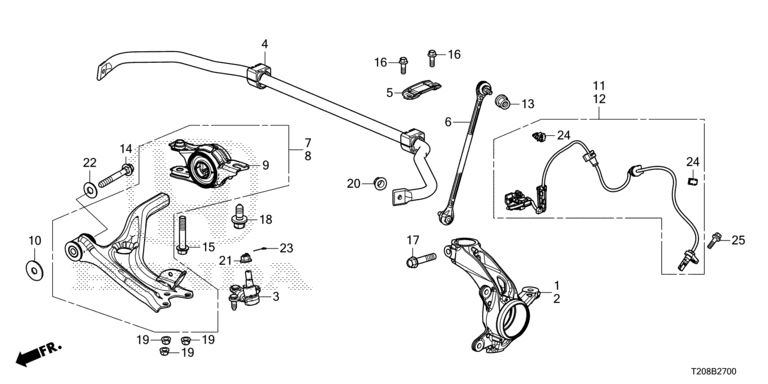

Ref No.	Parts No.	Parts Name	Parts Name(S/M)	Unit Qty
1	51211-T24-T00	KNUCKLE, R. FR.	Front Knuckle	001
2	51216-T24-T00	KNUCKLE, L. FR.	Front Knuckle	001
3	51220-T24-T01	JOINT COMP., FR. LOWER BALL	Front Lower Arm Ball Joint	002
4	51300-T24-T01	STABILIZER COMP., FR.	Front Stabilizer Bar	001
5	51308-T20-A00	BRACKET, STABILIZER HOLD	Bushing Holder	002
6	51320-TBA-A02	LINK COMP., FR. STABILIZER	Front Stabilizer Link	002
7	51350-T24-X10	ARM COMP., R. FR. LOWER	Front Lower Arm Assembly	001
8	51360-T24-X10	ARM COMP., L. FR. LOWER	Front Lower Arm Assembly	001
9	51395-T24-X00	BRACKET COMP., FR. COMPLIANCE	Front Lower Arm Compliance Bushing	002
10	51397-T20-A01	BUSH, FR. LOWER ARM STOPPER	Stopper	002
11	57450-TET-H01	SENSOR ASSY., R. FR.	Wheel Speed Sensor	001
12	57455-TET-H01	SENSOR ASSY., L. FR.	Wheel Speed Sensor	001
13	90002-S10-000	NUT, FLANGE, 10MM		002
14	90118-T20-A00	BOLT, FLANGE, 14X105		002
15	90160-T20-A00	BOLT, FLANGE, 14X80		002
16	90165-TRT-A00	BOLT, FLANGE, 10X30		004
17	90168-TBA-A10	BOLT, FLANGE, 12X59		002
18	90181-TBA-A00	BOLT, FLANGE, 14X35		002
19	90215-SB0-003	NUT, SELF-LOCK, 12MM (SATO RASHI) (CLINCH)		006
20	90306-SB2-013	NUT, SELF-LOCK, 10MM (CLINCH)		002
21	90363-S47-000	NUT, LOWER ARM, 12MM		002
22	90513-T20-A00	WASHER, PLAIN, 16MM		002
23	90701-SX0-003	CLIP, UPPER ARM		002
24	91506-SZH-003	CLIP, WIRE HARNESS		004
25	95701-06012-08	BOLT, FLANGE, 6X12		002

Front Knuckle
