Description

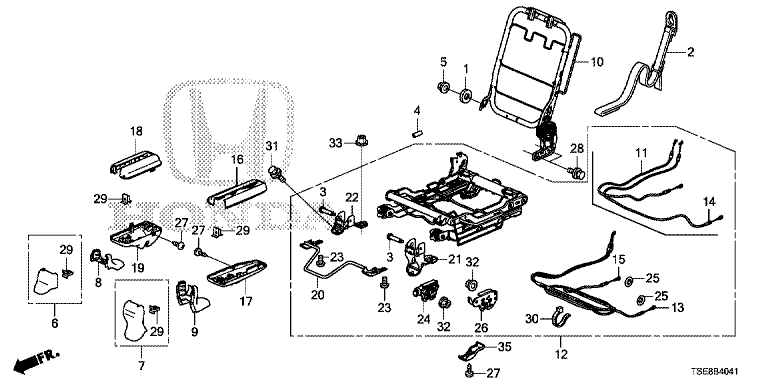

B-40-41 MIDDLE SEAT COMPONENTS (L)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 81118-SFA-003 | WASHER, PIVOT | 001 | |
| 3 | 81334-TE7-K01 | PIN, MIDDLE SEAT CUSHION HINGE | 002 | |
| 5 | 81398-TE7-K01 | NUT, FLANGE, 8MM | 001 | |
| 6 | 81704-TE7-K01ZC | COVER, L. MIDDLE SEAT FR. INNER FOOT *YR449L* (YR449L CASHMERE IVORY) | 001 | |
| 7 | 81705-TE7-K01ZC | COVER, L. MIDDLE SEAT FR. OUTER FOOT *YR449L* (YR449L CASHMERE IVORY) | 001 | |
| 8 | 81706-TE7-K01ZC | COVER, L. MIDDLE SEAT RR. INNER FOOT *YR449L* (YR449L CASHMERE IVORY) | 001 | |
| 9 | 81707-TE7-K01ZC | COVER, L. MIDDLE SEAT RR. OUTER FOOT *YR449L* (YR449L CASHMERE IVORY) | 001 | |
| 10 | 81726-TE7-K02 | FRAME COMP., L. MIDDLE SEATBACK | 001 | |
| 12 | 81736-TE7-F11 | FRAME COMP., L. MIDDLE SEAT CUSHION | 001 | |
| 13 | 81739-TE7-K02 | CABLE, L. MIDDLE SEAT CUSHION | 001 | |
| 15 | 81749-TE7-K01 | CABLE B, L. MIDDLE SEAT CUSHION | 001 | |
| 16 | 81791-TE7-K01ZC | COVER, L. MIDDLE SEAT RAIL OUTER UPPER *YR449L* (YR449L CASHMERE IVORY) | 001 | |
| 17 | 81792-TE7-K01ZC | COVER, L. MIDDLE SEAT RAIL OUTER LOWER *YR449L* (YR449L CASHMERE IVORY) | 001 | |
| 18 | 81793-TE7-K01ZC | COVER, L. MIDDLE SEAT RAIL INNER UPPER *YR449L* (YR449L CASHMERE IVORY) | 001 | |
| 19 | 81794-TE7-K01ZC | COVER, L. MIDDLE SEAT RAIL INNER LOWER *YR449L* (YR449L CASHMERE IVORY) | 001 | |
| 20 | 81795-TE7-K01 | LEVER COMP., L. | 001 | |
| 21 | 81796-TE7-K01 | BRACKET COMP., L. OUTER FOOT | 001 | |
| 22 | 81797-TE7-K01 | BRACKET COMP., L. INNER FOOT | 001 | |
| 23 | 82191-SWA-A01 | SCREW, PAN, 5X10 | 004 | |
| 24 | 82220-TE7-K01 | LOCK ASSY., R. MIDDLE SEAT | 001 | |
| 25 | 82227-SWA-A01 | NUT, PUSH | 002 | |
| 26 | 82620-TE7-K01 | LOCK ASSY., L. MIDDLE SEAT | 001 | |
| 27 | 90134-SE3-003 | SCREW, TAPPING, 5X10 | 002 | |
| 28 | 90143-SR3-000 | BOLT-WASHER, 10X22 | 002 | |
| 29 | 90610-S10-003 | CLIP, GARNISH | 004 | |
| 30 | 90650-TV1-003 | BAND, WIRE | 004 | |
| 31 | 93406-08020-08 | BOLT-WASHER, 8X20 | 002 | |
| 32 | 94050-08070 | NUT, FLANGE, 8MM | 006 | |
| 33 | 94050-08080 | NUT, FLANGE, 8MM | 002 |
