Description

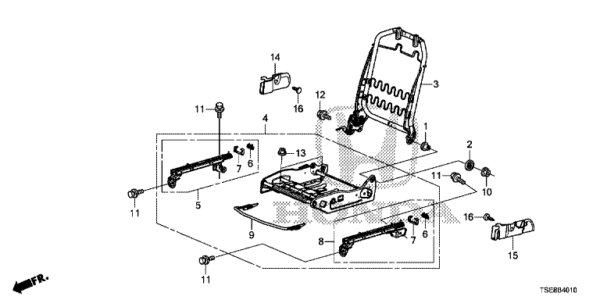

B-40-10 FRONT SEAT COMPONENTS (R)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 81117-TG1-T01 | BUSH, NYLON | 001 | |
| 2 | 81118-SFA-003 | WASHER, PIVOT | 001 | |
| 3 | 81126-TSE-T11 | FRAME COMP., R. FR. SEATBACK | 001 | |
| 4 | 81136-TXH-L31 | FRAME COMP., R. FR. SEAT CUSHION | 001 | |
| 5 | 81260-TG1-T01 | ADJUSTER, R. FR. SEAT OUTER SLIDE | 001 | |
| 6 | 81262-SNA-A01 | CAP, SLIDE ADJUSTER UPPER END | 002 | |
| 7 | 81262-TG1-T01 | CAP, SLIDE ADJUSTER LOWER END | 002 | |
| 8 | 81270-TG1-T01 | ADJUSTER, R. FR. SEAT INNER SLIDE | 001 | |
| 9 | 81273-TG1-T01 | LEVER, FR. SEAT SLIDE | 001 | |
| 10 | 81398-TE7-K01 | NUT, FLANGE, 8MM | 001 | |
| 11 | 90135-S5A-003 | BOLT-WASHER, 10X27 | 004 | |
| 12 | 90143-SR3-900 | BOLT-WASHER, 10X22 | 002 | |
| 13 | 94050-08080 | NUT, FLANGE, 8MM | 005 | |
| 14 | 81269-TG2-D21ZC | COVER, R. UPPER RAIL OUTER *YR449L* (YR449L CASHMERE IVORY) | 001 | |
| 15 | 81279-TG2-D21ZC | COVER, R. UPPER RAIL INNER *YR449L* (YR449L CASHMERE IVORY) | 001 | |
| 16 | 90666-SA0-003M2 | CLIP, TRIM, 5MM *YR449L* (YR449L CASHMERE IVORY) | 002 |
