Description

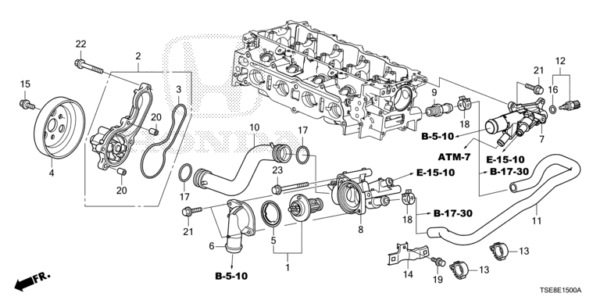

E-15 WATER PUMP
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 06193-55A-000 | THERMOSTAT ASSY. (FUJI BELLOWS) | 001 | |
| 2 | 19200-RB0-003 | PUMP COMP., WATER | 001 | |
| 3 | 19222-RB0-003 | PACKING, WATER PUMP | 001 | |
| 4 | 19224-RB0-000 | PULLEY, WATER PUMP | 001 | |
| 5 | 19305-5R0-000 | RUBBER, THERMOSTAT MOUNTING | 001 | |
| 6 | 19311-R3R-E00 | COVER, THERMOSTAT | 001 | |
| 7 | 19315-55A-Z50 | COVER COMP., WATER OUTLET | 001 | |
| 8 | 19320-RE2-E00 | CASE COMP., THERMOSTAT | 001 | |
| 9 | 19500-PE0-000 | JOINT, TUBE | 001 | |
| 10 | 19505-RB0-000 | PIPE COMP., CONNECTING | 001 | |
| 12 | 37870-RWC-A01 | SENSOR ASSY., WATER TEMPERATURE (PANASONIC) | 001 | |
| 15 | 90013-PCX-000 | BOLT, SPECIAL, 6X12 | 003 | |
| 16 | 91307-PLC-004 | O-RING, 9.5X1.9 (PANASONIC) | 001 | |
| 17 | 91314-RE2-E01 | O-RING, 31.2X4.1 (ARAI) | 002 | |
| 20 | 94301-08100 | DOWEL PIN, 8X10 | 002 | |
| 21 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 006 | |
| 22 | 95701-06035-08 | BOLT, FLANGE, 6X35 | 005 | |
| 23 | 95701-06100-08 | BOLT, FLANGE, 6X100 | 002 |
