Description

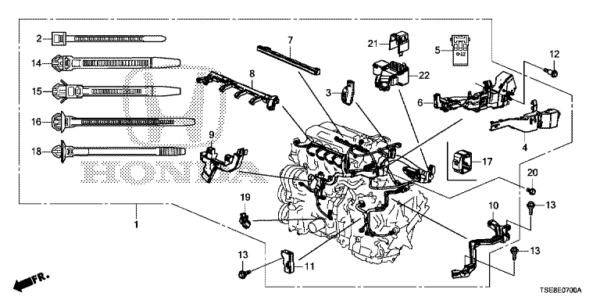

E-7 ENGINE WIRE HARNESS
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 32110-5XH-K50 | HARNESS, ENGINE WIRE | 001 | |
| 2 | 32113-TA0-003 | BAND, CABLE (BLACK) (100MM) | 001 | |
| 3 | 32118-5A2-A01 | COVER, COUPLER (R.) (WPC 6P 090 F) | 001 | |
| 4 | 32121-55A-T00 | HOLDER A, ENGINE HARNESS UPPER | 001 | |
| 5 | 32124-R60-003 | HOLDER, CORRUGATED (DARK BROWN) (22MM) | 001 | |
| 6 | 32131-55A-T00 | HOLDER A, ENGINE HARNESS LOWER | 001 | |
| 7 | 32132-RB0-000 | HOLDER B, ENGINE HARNESS | 001 | |
| 8 | 32133-55A-T00 | HOLDER C, ENGINE HARNESS | 001 | |
| 9 | 32134-RE2-000 | HOLDER D, ENGINE HARNESS | 001 | |
| 10 | 32135-55A-T00 | HOLDER, ENGINE WIRE HARNESS | 001 | |
| 11 | 32137-R1B-A50 | HOLDER, ENGINE HARNESS (CVT) (FR.) | 001 | |
| 12 | 90051-PNA-000 | BOLT, SPECIAL, 6X28 | 001 | |
| 13 | 90051-RGA-003 | BOLT, SPECIAL, 6X20.8 | 003 | |
| 14 | 91506-RTA-003 | CLIP A, HARNESS BAND (DARK VIOLET) (129.4MM) | 005 | |
| 15 | 91507-RTA-003 | CLIP B, HARNESS BAND (DARK GREEN) (129.4MM) | 003 | |
| 16 | 91542-SNA-003 | CLIP, HARNESS BAND (DARK BLUE) (164.5MM) | 001 | |
| 18 | 91558-ST5-003 | CLIP, HARNESS BAND (NATURAL) (135MM) (7MM HOLE) | 001 | |
| 19 | 91727-55A-003 | COVER, WATER PROOF COUPLER | 001 | |
| 20 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 001 |
