Description

Ref No.	Parts No.	Parts Name	Unit Qty
1	11000-RB1-000	BLOCK ASSY., CYLINDER	001
2	11104-RB0-J00	SPACER COMP., COOLING CONTROL	001
3	11106-PWA-300	BOLT, SEALING, 24MM	002
4	11107-PWA-300	WASHER, SEALING, 24MM	002
5	11109-R1A-A00	BOLT, KNOCK SENSOR	001
6	11200-5EA-K00	PAN ASSY., OIL	001
7	11203-PWA-003	O-RING, 17.8X2.4 (NOK)	001
8	11252-PWA-000	PACKING, OIL PAN	001
9	11850-55A-Z00	COVER, BREATHER	001
10	15200-RK8-000	PIPE COMP., OIL LEVEL	001
11	15650-RB1-000	GAUGE COMP., OIL LEVEL	001
12	30530-R1A-A01	SENSOR, KNOCK	001
13	32113-RBJ-010	SUB HARNESS, CRANK SENSOR	001
14	32742-RB0-000	STAY, CRANK SENSOR HARNESS	001
15	32743-RB0-000	CLAMP, CRANK SENSOR HARNESS TUBE	003
16	37241-RNA-A01	SWITCH ASSY., OIL PRESSURE (DENSO)	001
17	37500-RB0-006	SENSOR ASSY., CRANK	001
18	37501-RSJ-E00	COVER, CRANK SENSOR	001
19	90001-PM3-003	BOLT, DRAIN PLUG, 28MM	001
20	90008-PM0-003	BOLT-WASHER, 10X112	010
21	90009-PY3-000	BOLT, DRAIN PLUG, 14MM	001
22	90401-PR4-000	WASHER, SEALING, 28MM	001
23	90702-PE0-000	DOWEL PIN, 12X18	020
24	90705-PT0-000	DOWEL PIN, 16X22	001
25	91214-RE0-H01	OIL SEAL, 80X98X10 (NOK)	001
26	91308-PH9-000	O-RING, 8.8X1.9	001
27	91333-PNC-006	O-RING	001
28	93401-05012-08	BOLT-WASHER, 5X12	003
29	94050-08080	NUT, FLANGE, 8MM	001
30	94109-14000	WASHER, DRAIN PLUG, 14MM	001
31	94301-12200	DOWEL PIN, 12X20	001
32	95701-06012-08	BOLT, FLANGE, 6X12	008
33	95701-06016-08	BOLT, FLANGE, 6X16	002
34	95701-06032-08	BOLT, FLANGE, 6X32	010
35	95701-06050-08	BOLT, FLANGE, 6X50	002
36	95701-08020-08	BOLT, FLANGE, 8X20	001
37	95701-08035-08	BOLT, FLANGE, 8X35	001

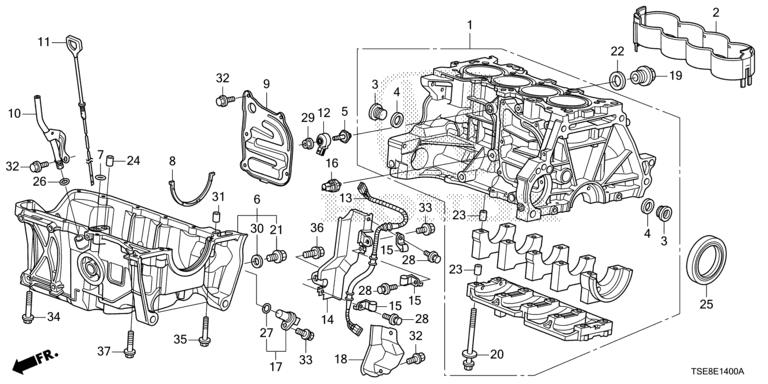

Cylinder Block
