Description

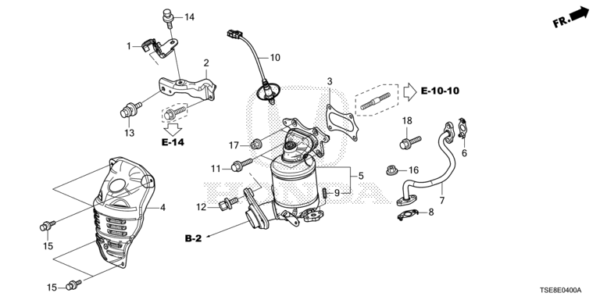

E-4 CONVERTER
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 11941-RE1-Z00 | STAY COMP., CONVERTER | 001 | |
| 2 | 11943-RE1-Z00 | BRACKET COMP., CONVERTER | 001 | |
| 3 | 18115-RE1-Z02 | GASKET, CONVERTER (NIPPON LEAKLESS) | 001 | |
| 4 | 18120-5EA-K00 | COVER, CONVERTER | 001 | |
| 5 | 18190-5EA-K00 | CONVERTER COMP., CC | 001 | |
| 6 | 18716-5XH-K01 | GASKET A, EGR PIPE | 001 | |
| 7 | 18717-RP3-A00 | PIPE COMP., EGR | 001 | |
| 8 | 18719-5XH-K01 | GASKET B, EGR PIPE | 001 | |
| 9 | 18720-R70-A00 | BOLT, STUD, 8X29 | 002 | |
| 10 | 36531-RE0-003 | SENSOR, AIR FUEL RATIO | 001 | |
| 11 | 90001-RB0-000 | BOLT, FLANGE, 8X22 | 002 | |
| 12 | 90001-RE1-Z00 | BOLT-WASHER, 8X32 | 001 | |
| 13 | 90004-PLC-000 | BOLT-WASHER, 10X25 | 001 | |
| 14 | 90004-RB0-J60 | BOLT-WASHER, 8X22 | 001 | |
| 15 | 93404-06020-08 | BOLT-WASHER, 6X20 | 004 | |
| 16 | 94050-08050 | NUT, FLANGE, 8MM | 002 | |
| 17 | 94050-08080 | NUT, FLANGE, 8MM | 002 | |
| 18 | 95701-08020-08 | BOLT, FLANGE, 8X20 | 002 |
