Description

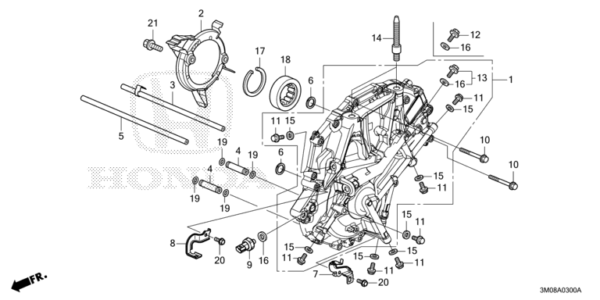

ATM-3 L. SIDE COVER
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 2 | 21245-63B-004 | PLATE COMP., L. SIDE COVER | 001 | |
| 3 | 22730-R3W-000 | PIPE COMP., LUBRICATION | 001 | |
| 4 | 22741-5L0-000 | PIPE, 10.9X48 | 10.9 x 48 mm Pipe | 002 |
| 5 | 22741-5T0-000 | PIPE, 8X244 | 001 | |
| 6 | 22811-R9L-003 | RING, SEAL, 16MM | 002 | |
| 8 | 28161-63C-000 | STAY B, HARNESS | 001 | |
| 9 | 28660-6GA-003 | SENSOR ASSY., OIL PRESSURE | 001 | |
| 10 | 90004-PT2-000 | BOLT, FLANGE, 6X35 | 016 | |
| 11 | 90024-612-000 | BOLT, SEALING, 8MM | Sealing Bolt | 007 |
| 12 | 90024-P1V-000 | BOLT, SEALING, 10MM | Sealing Bolt | 001 |
| 14 | 90380-TRN-H00 | BOLT, STUD, 12X74 | 002 | |
| 15 | 90471-580-000 | PACKING, 8MM | 007 | |
| 16 | 90471-59C-000 | PACKING, 10MM (AL-PACKING) | 002 | |
| 17 | 90606-5T0-000 | CIRCLIP, INTERNAL, 67MM | 001 | |
| 18 | 91101-5T0-003 | BEARING, NEEDLE, 44X67X15 | 001 | |
| 19 | 91311-PA9-004 | O-RING, 7.7X1.9 (NOK) | 004 | |
| 20 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 001 | |
| 21 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 002 |
