Description

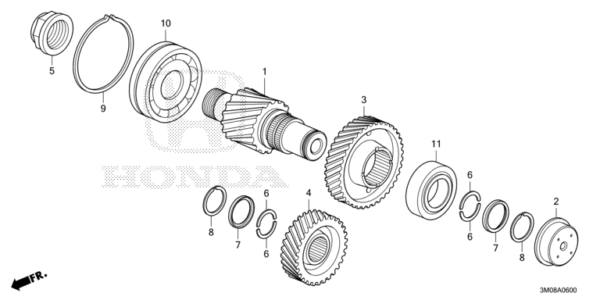

ATM-6 FINAL DRIVE SHAFT
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 23221-63C-000 | SHAFT, FINAL DRIVE | 001 | |
| 2 | 23225-63C-000 | PLATE B, OIL GUIDE | 001 | |
| 3 | 23232-60B-000 | GEAR, SECONDARY DRIVEN | 001 | |
| 4 | 23241-60B-000 | GEAR, SECONDARY DRIVE | 001 | |
| 5 | 90201-63C-000 | NUT, FLANGE, 28MM | 001 | |
| 6 | 90430-P4V-000 | COTTER, 25.5 (B) (3.0) | 004 | |
| 7 | 90435-63C-000 | RETAINER, COTTER | 002 | |
| 8 | 90611-P4V-000 | CIRCLIP, EXTERNAL, 29MM | 002 | |
| 9 | 90615-63C-000 | RING, SNAP, 83MM | 001 | |
| 10 | 91102-63C-006 | BEARING, BALL, 28X83X22.5 | 001 | |
| 11 | 91103-63C-003 | BEARING, NEEDLE, 29X60X20.5 | 001 |
