Description

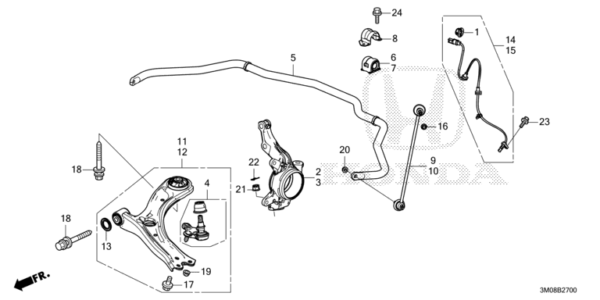

B-27 FRONT LOWER ARM
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 42533-SMG-E01 | GROMMET, HARNESS | 002 | |
| 2 | 51211-3M0-J00 | KNUCKLE, R. FR. | Front Knuckle | 001 |
| 3 | 51216-3M0-J00 | KNUCKLE, L. FR. | Front Knuckle | 001 |
| 4 | 51220-3M0-J01 | JOINT COMP., FR. LOWER BALL | Front Lower Arm Ball Joint | 002 |
| 5 | 51300-3M0-J11 | SPRING, FR. STABILIZER | Front Stabilizer Bar/Front Stabilizer Bar | 001 |
| 6 | 51306-3M0-J11 | BUSH, R. FR. STABILIZER HOLDER | Stabilizer Bushing/Stabilizer Bushing | 001 |
| 7 | 51307-3M0-J11 | BUSH, L. FR. STABILIZER HOLDER | Stabilizer Bushing/Stabilizer Bushing | 001 |
| 8 | 51308-SWW-P50 | BRACKET, FR. STABILIZER | Bushing Holder | 002 |
| 9 | 51320-3M0-J01 | LINK COMP., R. FR. STABILIZER | Front Stabilizer Link | 001 |
| 10 | 51325-3M0-J01 | LINK COMP., L. FR. STABILIZER | Front Stabilizer Link | 001 |
| 11 | 51350-3M0-J00 | ARM ASSY., R. FR. LOWER | Front Lower Arm | 001 |
| 12 | 51360-3M0-J00 | ARM ASSY., L. FR. LOWER | Front Lower Arm | 001 |
| 13 | 51397-T00-T01 | BUSH, FR. LOWER ARM STOPPER | Stopper | 002 |
| 14 | 57450-3M0-J01 | SENSOR ASSY., R. FR. | Wheel Speed Sensor | 001 |
| 15 | 57455-3M0-J01 | SENSOR ASSY., L. FR. | Wheel Speed Sensor | 001 |
| 16 | 90002-S10-000 | NUT, FLANGE, 10MM | 002 | |
| 17 | 90018-SNA-010 | BOLT, FLANGE, 12X18 | 002 | |
| 18 | 90118-3M0-J00 | BOLT-WASHER, 14X88 | 004 | |
| 19 | 90215-SB0-003 | NUT, SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | 004 | |
| 20 | 90306-SB2-013 | NUT, SELF-LOCK, 10MM (CLINCH) | 002 | |
| 21 | 90363-S3V-A01 | NUT, CASTLE, 14MM | 002 | |
| 22 | 90701-SKC-003 | PIN, SPLIT (M14) | 002 | |
| 23 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 002 | |
| 24 | 95701-08018-08 | BOLT, FLANGE, 8X18 | 004 |
