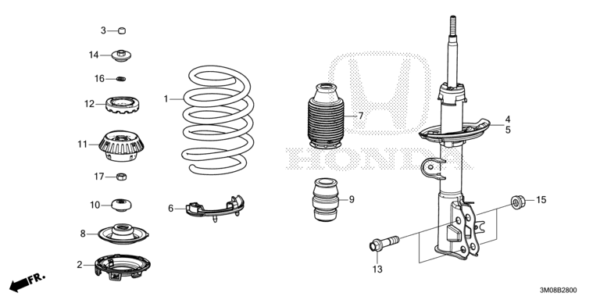

B-28 FRONT SHOCK ABSORBER
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 51401-3M3-T01 | SPRING, FR. | Damper Spring/Damper Spring/Damper Spring | 002 |
| 2 | 51402-3M0-J01 | SEAT, FR. SPRING UPPER CLIP | Upper Spring Seat Clip | 002 |
| 3 | 51608-SLJ-000 | CAP, FR. DAMPER | Damper Cap | 002 |
| 4 | 51611-3M3-T01 | ABSORBER UNIT, R. FR. SHOCK | Front Damper/Spring | 001 |
| 5 | 51621-3M3-T01 | ABSORBER UNIT, L. FR. SHOCK | Front Damper/Spring | 001 |
| 6 | 51684-3M0-J01 | RUBBER, FR. SPRING SEAT | Lower Spring Seat Rubber | 002 |
| 7 | 51686-3M0-J01 | SLEEVE, FR. DUST COVER | Dust Cover | 002 |
| 8 | 51688-3M0-J00 | SEAT, FR. SPRING UPPER | Upper Spring Seat | 002 |
| 9 | 51722-3M0-J02 | RUBBER, FR. BUMP STOPPER | Bump Stop | 002 |
| 10 | 51726-SFA-005 | BEARING, SHOCK ABSORBER MOUNTING | Damper Mounting Bearing | 002 |
| 11 | 51920-TG0-T01 | RUBBER COMP., FR. SHOCK ABSORBER MOUNTING | Damper Rubber Mount | 002 |
| 12 | 51925-TG0-T01 | DAMPER COMP., REBOUND STOP | Damper Mounting Base | 002 |
| 13 | 90119-TR0-A00 | BOLT, FLANGE, 16X62 | 004 | |
| 13 | 90120-STK-000 | BOLT, FLANGE, 16X62 (SERVICE) | (4) | |
| 14 | 90215-TM6-003 | NUT, FR. DAMPER | 002 | |
| 15 | 90382-STK-A01 | NUT, FLANGE, 16MM | 004 | |
| 16 | 90551-SAA-000 | WASHER, WAVE, 12MM | 002 | |
| 17 | 94030-12280 | NUT, HEX., 12MM | 002 |
