Description

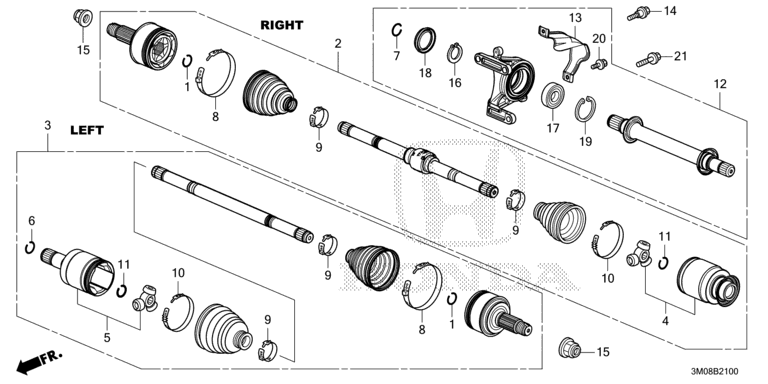

B-21 FRONT DRIVESHAFT/HALF SHAFT
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 42331-S3V-A61 | RING, SNAP | Stop Ring | 002 |
| 2 | 44305-3M1-T01 | DRIVESHAFT ASSY., R. | Front Driveshaft | 001 |
| 3 | 44306-3M1-T01 | DRIVESHAFT ASSY., L. | Front Driveshaft | 001 |
| 4 | 44310-3M1-305 | JOINT COMP., INBOARD | 001 | |
| 5 | 44310-3M1-T11 | JOINT COMP., INBOARD | Inboard Joint | 001 |
| 6 | 44319-S01-A01 | SET RING, 26X1.8 | 001 | |
| 7 | 44319-SE0-000 | SET RING, 28X2.0 | 001 | |
| 8 | 44327-SVB-A11 | BAND, OUTBOARD BOOT | 002 | |
| 9 | 44327-TZ4-A01 | BAND, SHAFT BOOT | Boot Band | 004 |
| 10 | 44328-TLA-A01 | BAND, INBOARD BOOT | 002 | |
| 11 | 44339-SJ6-300 | CIRCLIP | Circlip | 002 |
| 12 | 44500-T7A-000 | SHAFT ASSY., HALF (CVT) | Intermediate Shaft | 001 |
| 13 | 44517-T7A-000 | COVER, HEAT | Heat Shield | 001 |
| 14 | 90102-SF1-000 | BOLT, HEX., 10X1.25 | 002 | |
| 15 | 90305-S3V-A11 | NUT, SPINDLE | Spindle Nut | 002 |
| 16 | 90681-SR3-000 | CIRCLIP, EXTERNAL, 33MM | External Snap Ring | 001 |
| 17 | 91057-SR3-008 | BEARING, HALF SHAFT (NTN) | Intermediate Shaft Bearing | 001 |
| 18 | 91260-SWA-A01 | SEAL, HALF SHAFT OUTER | Outer Seal | 001 |
| 19 | 94520-55000 | CIRCLIP, INTERNAL, 55MM | Internal Snap Ring | 001 |
| 20 | 95701-06010-08 | BOLT, FLANGE, 6X10 | 002 | |
| 21 | 95701-10035-08 | BOLT, FLANGE, 10X35 | 001 |
