Description

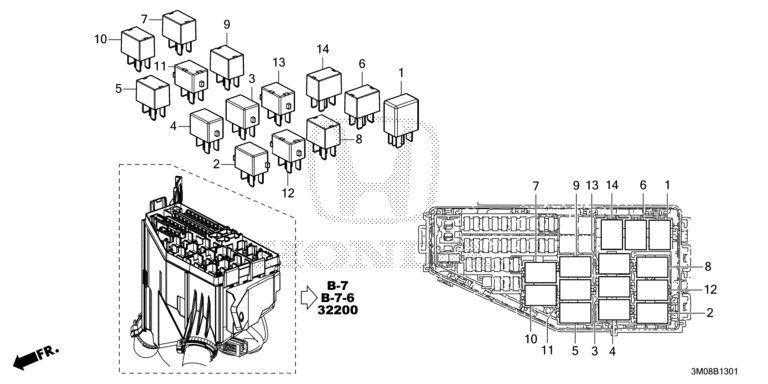

B-13-1 CONTROL UNIT (ENGINE ROOM) (2)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 39794-S10-003 | RELAY ASSY., POWER (5P) (MICRO ISO) (MITSUBA) (FAN HI/LOW) | FAN CONTROL RELAY (5P) | 001 |
| 2 | 39794-SDA-003 | RELAY ASSY., FUEL PUMP (MITSUBA) | PGM-FI MAIN RELAY 2 (4P)/PGM-FI MAIN RELAY 2 (4P) | 001 |
| 3 | 39794-T7A-901 | RELAY ASSY. (MICRO ISO) (ECU) (DENSO) (FI MAIN) | PGM-FI MAIN RELAY 1 (4P)/IGNITION COIL RELAY (4P) | 001 |
| 4 | 39794-T7A-901 | RELAY ASSY. (MICRO ISO) (ECU) (DENSO) (IGNITION COIL) | PGM-FI MAIN RELAY 1 (4P)/IGNITION COIL RELAY (4P) | 001 |
| 5 | 39794-SDA-A02 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (MAIN FAN) | HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/FRONT FOG LIGHT RELAY (4P)/POWER WINDOW RELAY (4P)/INJECTOR RELAY (4P)/BLOWER MOTOR RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY (4P)/SECURITY HORN RELAY (4P)/FRONT ACCESSORY POWER SOCKET RELAY (4P)/HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/INJECTOR RELAY (4P)/HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/FRONT FOG LIGHT RELAY (4P)/POWER WINDOW RELAY (4P)/INJECTOR RELAY (4P)/BLOWER MOTOR RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY (4P)/SECURITY HORN RELAY (4P)/FRONT ACCESSORY POWER SOCKET RELAY (4P) | 001 |
| 7 | 39794-SDA-A02 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (DRIVE BY WIRE) | HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/FRONT FOG LIGHT RELAY (4P)/POWER WINDOW RELAY (4P)/INJECTOR RELAY (4P)/BLOWER MOTOR RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY (4P)/SECURITY HORN RELAY (4P)/FRONT ACCESSORY POWER SOCKET RELAY (4P)/HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/INJECTOR RELAY (4P)/HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/FRONT FOG LIGHT RELAY (4P)/POWER WINDOW RELAY (4P)/INJECTOR RELAY (4P)/BLOWER MOTOR RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY (4P)/SECURITY HORN RELAY (4P)/FRONT ACCESSORY POWER SOCKET RELAY (4P) | 001 |
| 8 | 39794-SDA-A02 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (RR. DEFOGGER) | HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/FRONT FOG LIGHT RELAY (4P)/POWER WINDOW RELAY (4P)/INJECTOR RELAY (4P)/BLOWER MOTOR RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY (4P)/SECURITY HORN RELAY (4P)/FRONT ACCESSORY POWER SOCKET RELAY (4P)/HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/INJECTOR RELAY (4P)/HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/FRONT FOG LIGHT RELAY (4P)/POWER WINDOW RELAY (4P)/INJECTOR RELAY (4P)/BLOWER MOTOR RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY (4P)/SECURITY HORN RELAY (4P)/FRONT ACCESSORY POWER SOCKET RELAY (4P) | 001 |
| 9 | 39794-SDA-A02 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (HORN) | HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/FRONT FOG LIGHT RELAY (4P)/POWER WINDOW RELAY (4P)/INJECTOR RELAY (4P)/BLOWER MOTOR RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY (4P)/SECURITY HORN RELAY (4P)/FRONT ACCESSORY POWER SOCKET RELAY (4P)/HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/INJECTOR RELAY (4P)/HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/FRONT FOG LIGHT RELAY (4P)/POWER WINDOW RELAY (4P)/INJECTOR RELAY (4P)/BLOWER MOTOR RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY (4P)/SECURITY HORN RELAY (4P)/FRONT ACCESSORY POWER SOCKET RELAY (4P) | 001 |
| 10 | 39794-SDA-A02 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (CONDENSER FAN) | HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/FRONT FOG LIGHT RELAY (4P)/POWER WINDOW RELAY (4P)/INJECTOR RELAY (4P)/BLOWER MOTOR RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY (4P)/SECURITY HORN RELAY (4P)/FRONT ACCESSORY POWER SOCKET RELAY (4P)/HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/INJECTOR RELAY (4P)/HORN RELAY (4P)/A/C CONDENSER FAN RELAY (4P)/DC-DC CONVERTER IG1 RELAY (4P)/REAR WINDOW DEFOGGER RELAY (4P)/ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY/FRONT FOG LIGHT RELAY (4P)/POWER WINDOW RELAY (4P)/INJECTOR RELAY (4P)/BLOWER MOTOR RELAY (4P)/RADIATOR FAN RELAY (4P)/WINDSHIELD WIPER MOTOR RELAY (4P)/SECURITY HORN RELAY (4P)/FRONT ACCESSORY POWER SOCKET RELAY (4P) | 001 |
| 11 | 39794-T5A-J01 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (STARTER CUT 2) | STARTER CUT RELAY 1/STARTER CUT RELAY 2 | 001 |
| 12 | 39794-T5A-J01 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (MAGNET CLUTCH) | STARTER CUT RELAY 1/STARTER CUT RELAY 2 | 001 |
| 13 | 39794-T5A-J01 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (STARTER CUT 1) | STARTER CUT RELAY 1/STARTER CUT RELAY 2 | 001 |
