Description

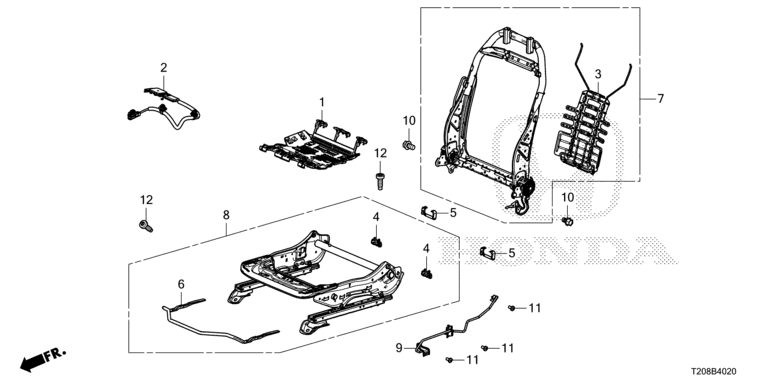

B-40-20 FRONT SEAT COMPONENTS (L.) (RH)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 81132-TZA-J01 | SPRING COMP., SEAT CUSHION | Passenger’s Seat Cushion Spring | 001 |
| 3 | 81190-TZA-J01 | MAT COMP., FR. SEATBACK | Front Seat Lumbar Support Mat | 001 |
| 4 | 81262-SNA-A01 | CAP, SLIDE ADJUSTER UPPER END | Upper Seat Rail End Cap | 002 |
| 5 | 81262-TG1-T01 | CAP, SLIDE ADJUSTER LOWER END | Lower Seat Rail End Cap | 002 |
| 6 | 81273-TZA-J01 | LEVER, FR. SEAT SLIDE | Passenger’s Seat Slide Lever/Driver’s Seat Slide Lever | 001 |
| 7 | 81525-T24-Z01 | FRAME ASSY., L. FR. SEATBACK | Passenger’s Seat-Back Frame | 001 |
| 8 | 81536-T24-Z01 | FRAME COMP., L. FR. SEAT CUSHION | Passenger’s Seat Cushion Frame | 001 |
| 9 | 81680-TZA-J01 | WIRE COMP. A, L. FR. SEAT ANCHOR | Passenger’s Seat Anchor Wire | 001 |
| 10 | 82122-T0A-A01 | BOLT, FLANGE, 10X16 | 004 | |
| 11 | 82271-TJB-A21 | SCREW, TAPPING, 5X10 (HT) | 003 | |
| 12 | 90135-TJB-A00 | BOLT, TORX PLUS, 10X30 | 004 |
