Description

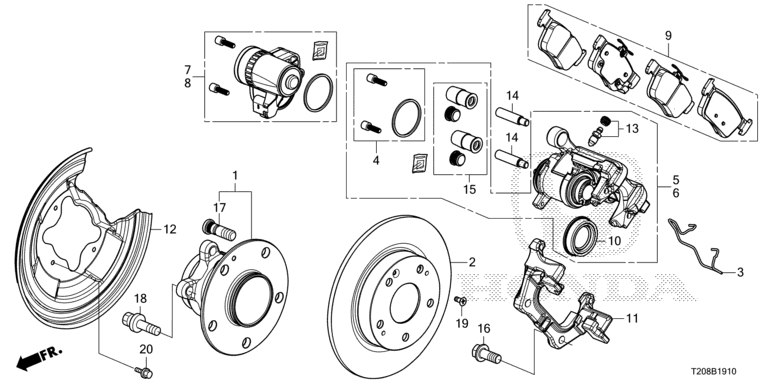

B-19-10 REAR BRAKE
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 42200-T24-T01 | BEARING ASSY., RR. HUB UNIT | Hub Bearing Unit | 002 |
| 2 | 42510-TEA-T01 | DISK, RR. BRAKE | Brake Disc | 002 |
| 3 | 43005-TV0-E01 | CLIP, HOUSING | Housing Clip | 002 |
| 4 | 43012-TBA-A01 | GEAR KIT, MOTOR (SERVICE) | 002 | |
| 5 | 43018-TEA-T02 | CALIPER SUB ASSY., R. RR. | 001 | |
| 6 | 43019-TEA-T02 | CALIPER SUB ASSY., L. RR. | 001 | |
| 7 | 43020-TEA-T02 | GEAR UNIT, R. MOTOR | Electric Parking Brake Actuator | 001 |
| 8 | 43021-TEA-T02 | GEAR UNIT, L. MOTOR | Electric Parking Brake Actuator | 001 |
| 9 | 43022-TEA-T12 | PAD SET, RR. | 001 | |
| 10 | 43214-TBA-A01 | BOOT ASSY., DUST | Piston Boot | 002 |
| 11 | 43220-TBA-A01 | ANCHOR | Caliper Bracket | 002 |
| 12 | 43253-TBA-A00 | GUARD, RR. SPLASH | Splash Guard | 002 |
| 13 | 45003-TV0-E01 | SCREW ASSY., BLEEDER | 002 | |
| 14 | 45004-SEA-E01 | PIN, LOCATING | Pin Bolt | 004 |
| 15 | 45007-SEA-E01 | BUSH KIT | Pin Bushing | 002 |
| 16 | 90103-SHJ-000 | BOLT, CALIPER MOUNTING (12X30) | 004 | |
| 17 | 90113-S5H-005 | BOLT, WHEEL (THAI MEIRA) | Wheel Bolt | 010 |
| 17 | 90113-SA0-006 | BOLT, WHEEL (SAGA) | Wheel Bolt/Wheel Bolt | 010 |
| 17 | 90113-SA0-025 | BOLT, WHEEL (NAGOYA RASHI) | Wheel Bolt/Wheel Bolt | 010 |
| 17 | 90113-SM1-005 | BOLT, WHEEL (ROCKNEL FASTENER) | Wheel Bolt | 010 |
| 18 | 90160-TBA-A01 | BOLT-WASHER, 12X55 | 008 | |
| 19 | 93600-06014-0H | SCREW, FLAT, 6X14 | 002 | |
| 20 | 95701-06012-05 | BOLT, FLANGE, 6X12 | 006 |
