Description

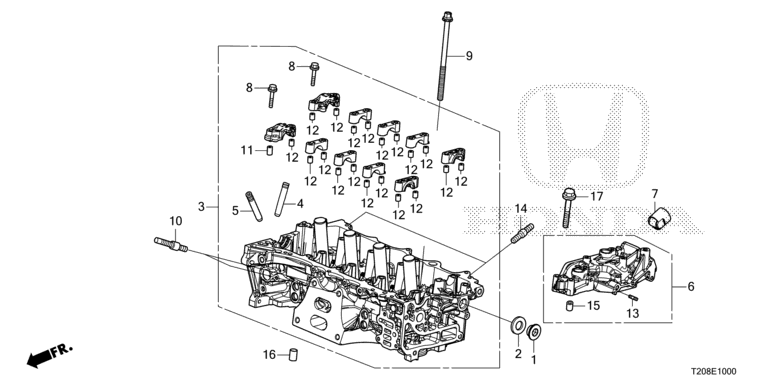

E-10 CYLINDER HEAD
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 11105-RNA-A00 | BOLT, SEALING, 20MM | Sealing Bolt | 001 |
| 2 | 11106-RNA-A00 | WASHER, SEALING, 20MM | 001 | |
| 3 | 12100-6A0-A00 | HEAD ASSY., CYLINDER | Cylinder Head | 001 |
| 4 | 12204-PNA-305 | GUIDE, IN. VALVE (O.S.) | Intake Valve Guide / Exhaust Valve Guide | 008 |
| 5 | 12204-PNA-305 | GUIDE, IN. VALVE (O.S.) (EXHAUST SIDE) | Intake Valve Guide / Exhaust Valve Guide | 008 |
| 6 | 12270-59B-000 | BASE COMP., FUEL HIGH PRESSURE PUMP | High Pressure Fuel Pump Base | 001 |
| 7 | 14780-5A2-A01 | LIFTER COMP., PUMP | Lifter | 001 |
| 8 | 90002-5R0-000 | BOLT, FLANGE, 7X35 | 020 | |
| 9 | 90005-59B-003 | BOLT-WASHER, 10X172 | 010 | |
| 10 | 90009-59B-003 | BOLT, STUD, 10X31 | 002 | |
| 11 | 90701-5A2-A00 | DOWEL PIN, 9X14 | 001 | |
| 12 | 90701-5R0-300 | DOWEL PIN, 9X10 | 019 | |
| 13 | 92900-06014-1B | BOLT, STUD, 6X14 | 001 | |
| 14 | 92900-08032-1B | BOLT, STUD, 8X32 | 002 | |
| 15 | 94301-08100 | DOWEL PIN, 8X10 | 002 | |
| 16 | 94301-14200 | DOWEL PIN, 14X20 | Dowel Pin | 002 |
| 17 | 95701-06045-08 | BOLT, FLANGE, 6X45 | 006 |
