Description

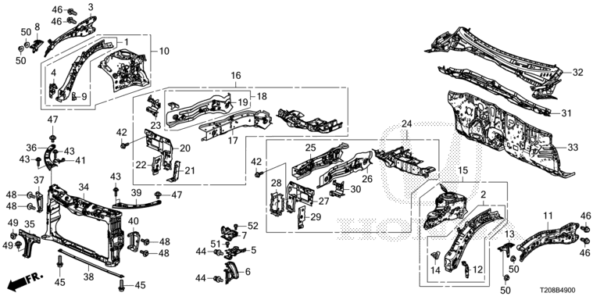

B-49 FRONT BULKHEAD/DASHBOARD
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 04674-T24-T00ZZ | EXTENSION SET, R. FR. SHOCK ABSORBER | 001 | |
| 2 | 04684-T24-T00ZZ | EXTENSION SET, L. FR. SHOCK ABSORBER | 001 | |
| 3 | 60610-T24-T00ZZ | MEMBER COMP., R. FR. WHEELHOUSE UPPER | 001 | |
| 4 | 60627-T20-A00ZZ | STIFFENER, R. FR. CRASH SENSOR | 001 | |
| 5 | 60631-T20-A00ZZ | BASE, BATTERY SETTING | 12 Volt Battery Base | 001 |
| 6 | 60632-T20-A00ZZ | STAY, BATTERY | 12 Volt Battery Base Bracket | 001 |
| 7 | 60633-T20-A00 | EXTENSION, BATTERY SETTING | 12 Volt Battery Base Extension | 001 |
| 8 | 60639-T20-A00ZZ | EXTENSION, R. FR. BULKHEAD | 001 | |
| 9 | 60641-T20-A00ZZ | SUPPORT, R. FR. DAMPER EXTENSION | 001 | |
| 10 | 60650-T24-T00ZZ | HOUSING COMP., R. FR. SHOCK ABSORBER | 001 | |
| 11 | 60714-T24-T00ZZ | MEMBER, L. FR. WHEELHOUSE UPPER | 001 | |
| 12 | 60727-T20-A00ZZ | STIFFENER, L. FR. CRASH SENSOR | 001 | |
| 13 | 60739-T20-A00ZZ | EXTENSION, L. FR. BULKHEAD | 001 | |
| 14 | 60741-T20-A00ZZ | SUPPORT, L. FR. DAMPER EXTENSION | 001 | |
| 15 | 60750-T24-T00ZZ | HOUSING COMP., L. FR. SHOCK ABSORBER | 001 | |
| 16 | 60810-T24-T00ZZ | FRAME COMP., R. FR. SIDE | 001 | |
| 17 | 60811-T24-305ZZ | FRAME SET, R. FR. SIDE | 001 | |
| 19 | 60812-TEA-305ZZ | PLATE SET, R. FR. SIDE BACK | 001 | |
| 20 | 60819-T20-305ZZ | FLANGE, R. FR. BUMPER BEAM EXTENSION | 001 | |
| 21 | 60821-TBA-A00ZZ | BRACKET, R. FR. SUB FRAME FR. | 001 | |
| 22 | 60822-TEZ-Y00ZZ | PLATE, R. FR. SIDE FRAME | 001 | |
| 23 | 60847-T24-T00ZZ | SUPPORT, R. FR. SIDE FRAME | 001 | |
| 24 | 60910-T24-T00ZZ | FRAME COMP., L. FR. SIDE | 001 | |
| 25 | 60911-T24-305ZZ | FRAME SET, L. FR. SIDE | 001 | |
| 26 | 60912-TEA-305ZZ | PLATE SET, L. FR. SIDE BACK | 001 | |
| 27 | 60919-T20-305ZZ | FLANGE, L. FR. BUMPER BEAM EXTENSION | 001 | |
| 28 | 60921-T20-A00ZZ | BRACKET, L. FR. SUB FRAME FR. | 001 | |
| 29 | 60922-TEZ-Y00ZZ | PLATE, L. FR. SIDE FRAME | 001 | |
| 30 | 60947-T24-T00ZZ | SUPPORT, L. FR. SIDE FRAME | 001 | |
| 31 | 61100-T24-T00ZZ | DASHBOARD COMP., UPPER | 001 | |
| 32 | 61160-T24-405ZZ | FRAME COMP., WINDSHIELD LOWER | 001 | |
| 33 | 61500-T24-T00ZZ | DASHBOARD COMP., LOWER | 001 | |
| 34 | 71411-T24-T01 | BULKHEAD, FR. | 001 | |
| 35 | 71413-T24-T00 | STAY, FR. BULKHEAD CENTER | Front Bulkhead Center Bracket | 001 |
| 36 | 71415-T20-A00 | FRAME, R. FR. BULKHEAD UPPER SIDE | 001 | |
| 37 | 71417-T20-A00 | STAY, R. FR. BULKHEAD SIDE | 001 | |
| 38 | 71430-TEA-T00 | BRACE, BULKHEAD LOWER | Front Brace | 001 |
| 39 | 71465-T20-A00 | FRAME, L. FR. BULKHEAD UPPER SIDE | 001 | |
| 40 | 71467-T20-A00 | STAY, L. FR. BULKHEAD SIDE | 001 | |
| 41 | 74123-T20-A00 | BRACKET, OPEN STAY | 001 | |
| 42 | 90102-TBA-A00 | BOLT-WASHER, 10X36 | 002 | |
| 43 | 90105-RYE-000 | BOLT-WASHER, 6X25 | 004 | |
| 44 | 90105-634-000 | BOLT-WASHER, 8X20 | 005 | |
| 45 | 90161-S71-000 | BOLT, FLANGE, 10X30 | 002 | |
| 46 | 90160-TGG-000 | BOLT, FLANGE, 10X18 | 004 | |
| 47 | 93404-08016-07 | BOLT-WASHER, 8X16 | 002 | |
| 48 | 93404-08025-05 | BOLT-WASHER, 8X25 | 004 | |
| 49 | 93406-08016-05 | BOLT-WASHER, 8X16 | 004 | |
| 50 | 94071-08080 | NUT-WASHER, 8MM | 004 | |
| 51 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 001 | |
| 52 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 004 |
