Description

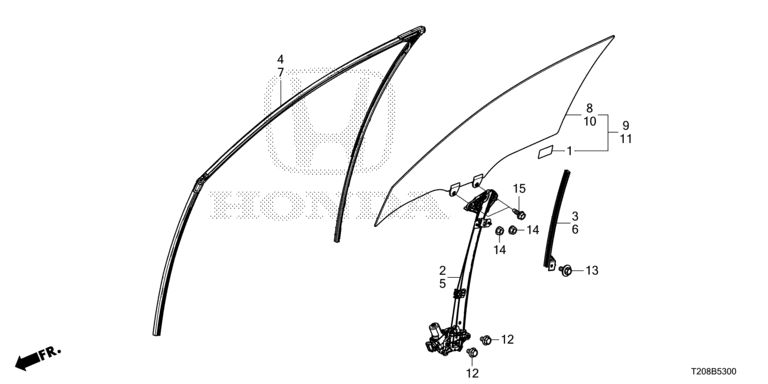

B-53 FRONT DOOR GLASS/REGULATOR
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 39885-S5A-A11 | LABEL, IMMOBILIZER & SECURITY | 002 | |
| 2 | 72210-T20-A01 | REGULATOR ASSY., R. FR. DOOR (POWER) | Front Door Regulator | 001 |
| 3 | 72231-T20-A01 | SASH, R. FR. DOOR CENTER LOWER | Front Door Center Lower Channel | 001 |
| 4 | 72235-T20-A01 | RUNCHANNEL, R. FR. DOOR | Front Door Glass Run Channel | 001 |
| 5 | 72250-T20-A01 | REGULATOR ASSY., L. FR. DOOR (POWER) | Front Door Regulator | 001 |
| 6 | 72271-T20-A01 | SASH, L. FR. DOOR CENTER LOWER | Front Door Center Lower Channel | 001 |
| 7 | 72275-T20-A01 | RUNCHANNEL, L. FR. DOOR | Front Door Glass Run Channel | 001 |
| 9 | 73300-T29-T00 | GLASS ASSY., R. FR. DOOR (GREEN) (AGI) | Front Door Glass | 001 |
| 11 | 73350-T29-T00 | GLASS ASSY., L. FR. DOOR (GREEN) (AGI) | Front Door Glass | 001 |
| 12 | 90021-SFA-000 | BOLT, FLANGE, 6X10 | 004 | |
| 13 | 93405-06016-08 | BOLT-WASHER, 6X16 | 002 | |
| 14 | 90301-T5A-000 | NUT, FLANGE, 6MM | 004 | |
| 15 | 90139-S2R-000 | BOLT, FLANGE, 6X16 (GUIDE) | 004 |
