Description

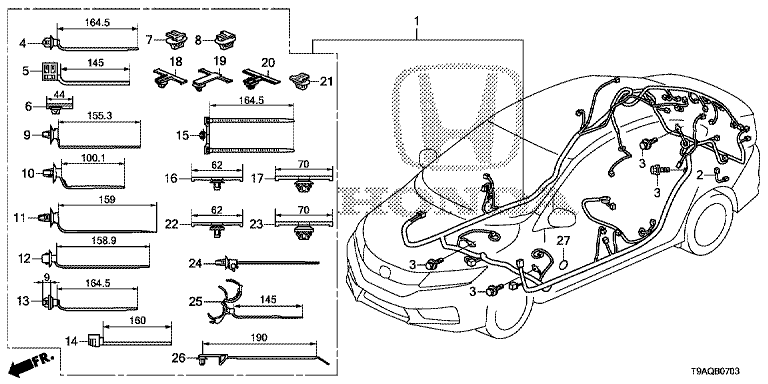

B-7-3 WIRE HARNESS (4) (RH)
| Ref No. | Parts No. | Parts Name | Unit Qty |
|---|---|---|---|
| 1 | 32107-3S6-T10 | HARNESS, FLOOR WIRE | 001 |
| 3 | 90148-SE0-003 | BOLT, EARTH, 6X16 (WASHER 12.5MM) (ZN) | 003 |
| 4 | 91507-SNA-003 | CLIP, HARNESS BAND (BROWN) (164.5MM) | 001 |
| 5 | 91531-SFA-003 | CLIP, HARNESS BAND, 6MM (NATURAL) (145MM) | 006 |
| 7 | 91533-STK-003 | CLIP, COUPLER (NATURAL) | 001 |
| 9 | 91540-STK-003 | CLIP, HARNESS BAND (BLACK) (155.3MM) | 001 |
| 10 | 91540-TA0-003 | CLIP, HARNESS BAND (NATURAL) (100.1MM) | N |
| 11 | 91540-TAA-003 | CLIP, HARNESS BAND (BLACK) (159MM) | N |
| 12 | 91542-SWY-003 | CLIP, HARNESS BAND (BLACK) (158.9MM) | N |
| 13 | 91545-SNA-003 | CLIP, HARNESS BAND (DARK BLUE) (164.5MM) (WITH SEAL) | 001 |
| 14 | 91547-SH3-003 | CLIP, BAND (NATURAL) (160MM) | 002 |
| 15 | 91547-T2A-003 | CLIP, BAND HARNESS (40) (BLACK) (164.5MM) | 002 |
| 16 | 91550-T0A-003 | CLIP, WIRE HARNESS (BLACK) (62MM) | 001 |
| 17 | 91550-TA0-003 | CLIP, WIRE HARNESS (NATURAL) (70MM) | 001 |
| 18 | 91552-TR0-003 | CLIP, OFFSET (20) (NATURAL) | 004 |
| 19 | 91553-SFE-003 | CLIP, WIRE HARNESS (30) (BLACK) | 003 |
| 22 | 91555-T0A-003 | CLIP, WIRE HARNESS (BLACK) (62MM) (SEAL) | 004 |
| 23 | 91555-TA0-003 | CLIP, WIRE HARNESS (NATURAL) (70MM) (SEAL) | 006 |
| 24 | 91556-SVA-A01 | CLIP, BAND (HARNESS & CABLE) (BLACK) | 003 |
| 25 | 91559-S5A-003 | HOLDER, HARNESS (BLACK) | 001 |
| 26 | 91559-TV0-003 | CLIP, BAND HARNESS (OFFSET) (30) (BLACK) | 004 |
| 27 | 91619-SE0-000 | SEAL, DOOR HOLE, 30MM (BLACK) | 001 |
