Description

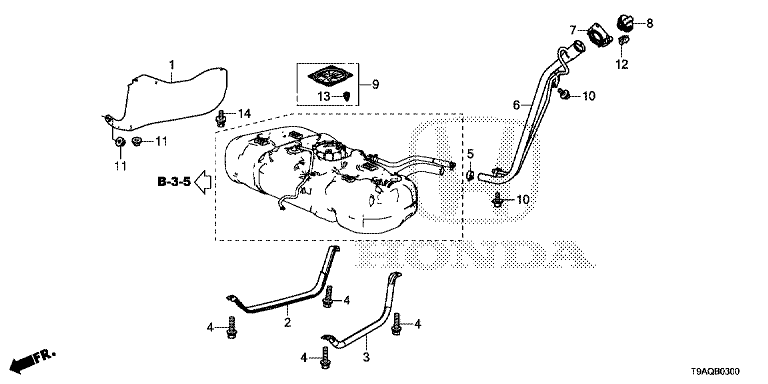

B-3 FUEL FILLER PIPE
| Ref No. | Parts No. | Parts Name | Unit Qty |
|---|---|---|---|
| 1 | 17519-T9A-T01 | PROTECTOR, FUEL TANK | 001 |
| 2 | 17521-T9A-T00 | BAND, R. FUEL TANK MOUNTING | 001 |
| 3 | 17522-T9A-T00 | PIPE, L. FUEL TANK MOUNTING | 001 |
| 4 | 17525-TY0-003 | BOLT-WASHER, 10X35 | 004 |
| 5 | 17652-TR0-003 | CLIP, FILLER TUBE (28.6MM) | 001 |
| 6 | 17660-T9A-F01 | PIPE COMP., FUEL FILLER | 001 |
| 7 | 17662-TAA-013 | PACKING, FUEL FILLER | 001 |
| 8 | 17670-T3W-003 | CAP COMP., FUEL FILLER | 001 |
| 9 | 74660-TA0-A00 | CAP ASSY., FLOOR MAINTENANCE HOLE | 001 |
| 10 | 90150-S04-003 | BOLT, EARTH, 6X16 | 002 |
| 11 | 90301-SV7-000 | NUT, PAINT CUTTING, 6MM | 002 |
| 12 | 91594-SNA-A01 | CLIP, FILLER CAP (BLACK) | 001 |
| 13 | 91601-TA0-003 | CLIP, FUEL MAINTENANCE HOLE CAP | 004 |
| 14 | 93405-06016-04 | BOLT-WASHER, 6X16 | 001 |
