Description

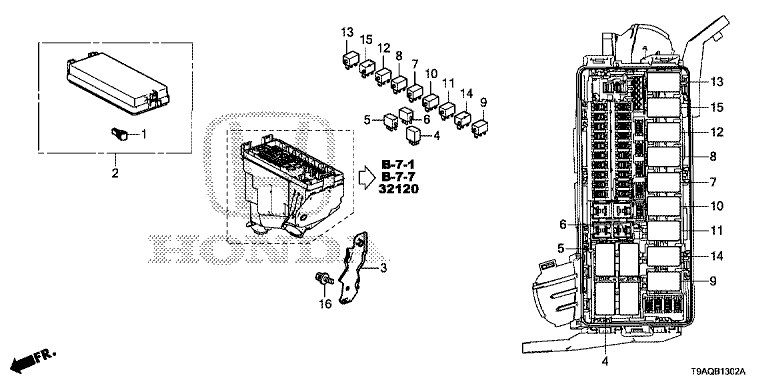

B-13-2 CONTROL UNIT (ENGINE ROOM) (2)
| Ref No. | Parts No. | Parts Name | Unit Qty |
|---|---|---|---|
| 1 | 38235-TA0-A01 | PULLER, FUSE | 001 |
| 2 | 38253-T9A-W12 | COVER, RELAY BOX UPPER | 001 |
| 3 | 38258-T9A-W00 | BRACKET, RELAY BOX | 001 |
| 4 | 39794-S10-003 | RELAY ASSY., POWER (5P) (MICRO ISO) (MITSUBA) (FAN HI/LOW) | 001 |
| 5 | 39794-T7A-901 | RELAY ASSY. (MICRO ISO) (ECU) (DENSO) (IGNITION COIL) | 001 |
| 6 | 39794-T7A-901 | RELAY ASSY. (MICRO ISO) (ECU) (DENSO) (FUEL INJECTION MAIN | 001 |
| 7 | 39794-TBA-A01 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (RADIATOR FAN) | 001 |
| 9 | 39794-TBA-A01 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (DRIVE BY WIRE) | 001 |
| 10 | 39794-TBA-A01 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (HORN) | 001 |
| 11 | 39794-TBA-A01 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (HEADLIGHT LOW) | 001 |
| 12 | 39794-TBA-A01 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (CONDENSER FAN) | 001 |
| 13 | 39794-SDA-A02 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (MAGNET CLUTCH) | 001 |
| 14 | 39794-T5A-J01 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (STARTER CUT 1) | 001 |
| 15 | 39794-T5A-J01 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (STARTER CUT 2) | 001 |
| 16 | 93401-06016-08 | BOLT-WASHER, 6X16 | 001 |
