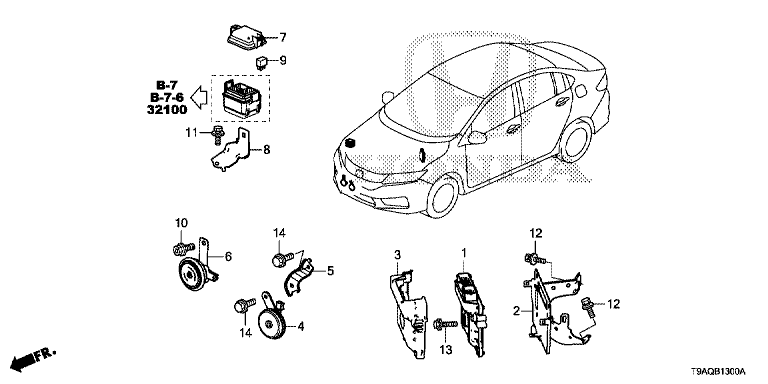

B-13 CONTROL UNIT (ENGINE ROOM) (1)
| Ref No. | Parts No. | Parts Name | Unit Qty |
|---|---|---|---|
| 1 | 37820-6LV-T61 | CONTROL MODULE, POWERTRAIN (REWRITABLE) | 001 |
| 2 | 37821-55A-Z50 | BRACKET COMP., POWERTRAIN CONTROL MODULE | 001 |
| 3 | 37823-5R0-J00 | COVER, POWERTRAIN CONTROL MODULE | 001 |
| 4 | 38100-TBA-A01 | HORN ASSY. (LOW) | 001 |
| 5 | 38101-3S6-T00 | BRACKET, LOW HORN | 001 |
| 6 | 38150-SFJ-W02 | HORN ASSY., HIGH (MITSUBA) | 001 |
| 7 | 38182-TF0-003 | COVER, RELAY BLOCK UPPER (3P) | 001 |
| 8 | 38186-T5R-000 | BRACKET, MULTI RELAY BOX | 001 |
| 9 | 39794-TBA-A01 | RELAY ASSY., POWER (MICRO ISO) (DENSO) (RR. DEFOGGER) | 001 |
| 10 | 90150-S84-003 | BOLT, EARTH, 8X16 | 001 |
| 11 | 93403-06012-08 | BOLT-WASHER, 6X12 | 001 |
| 12 | 93403-06016-08 | BOLT-WASHER, 6X16 | 002 |
| 13 | 95701-06025-08 | BOLT, FLANGE, 6X25 | 002 |
| 14 | 95701-08016-08 | BOLT, FLANGE, 8X16 | 002 |
