Description

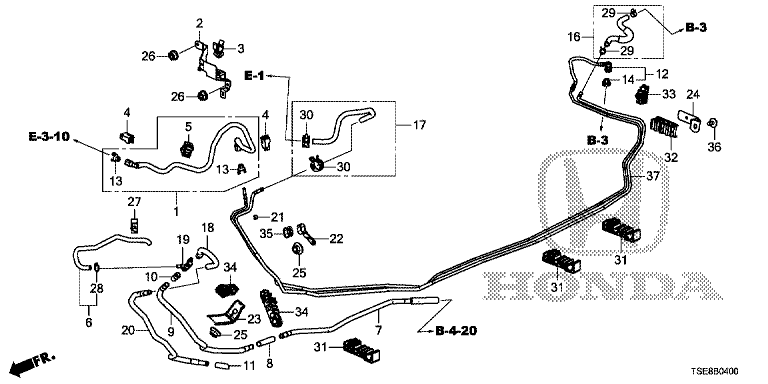

Ref No.	Parts No.	Parts Name	Unit Qty
1	16720-5XH-K01	HOSE COMP., FUEL FEED	001
2	16723-RE2-E00	BRACKET COMP., FUEL FEED HOSE	001
3	16725-RAC-003	CLAMP, FUEL HOSE (NATURAL)	001
4	16725-RNA-A00	HOLDER A, FUEL CONNECTOR (WHITE)	002
5	16727-PWA-004	CLAMP, FUEL HOSE	001
6	17357-TSA-K00	TUBE ASSY., SUB DRAIN	001
7	17374-TSA-K00	TUBE ASSY., FUEL DRAIN	001
8	17375-TRD-P00	TUBE F, DRAIN	001
9	17376-TSA-K00	PIPE A, CANISTER DRAIN	001
10	17377-TG1-P00	TUBE G, DRAIN	001
11	17379-TF0-G00	TUBE J, DRAIN	001
12	17700-TSA-K01	PIPE COMP., FUEL FEED	001
13	17711-S0X-A31	RETAINER (GREEN) (TOKAI)	002
14	17711-S84-004	RETAINER (WHITE) (SANOH)	001
16	17722-TRD-P00	TUBE ASSY. B, FUEL PURGE	001
17	17726-TSC-K00	HOSE ASSY., FUEL PURGE	001
18	17741-TG1-P00	TUBE H, DRAIN	001
19	17742-S1A-E01	JOINT, DRAIN TUBE	001
20	17742-TSA-K00	PIPE B, CANISTER DRAIN	001
21	17759-SM4-000	STOPPER, VENT PIPE	002
22	17761-TG2-T00	STAY C, FUEL PIPE	001
23	17762-TSA-K00	STAY B, FUEL PIPE	001
24	17763-TG1-T00	STAY A, FUEL PIPE	001
25	90301-SV7-000	NUT, PAINT CUTTING, 6MM	002
26	90361-SV4-003	NUT, PAINT CUTTING, 6MM	002
27	90651-679-003	HOLDER, ROD (BLACK)	001
28	91402-SDC-000	CLIP, TUBE (B12)	001
29	91406-SAA-J00	CLAMP, TUBE (D12)	002
30	91407-SDB-000	CLAMP, TUBE (D12.5)	002
31	91591-TG1-P01	CLAMP A, FUEL PIPE	003
32	91592-TG1-P01	CLAMP B, FUEL PIPE	001
33	91593-TG1-P01	CLAMP C, FUEL PIPE	001
34	91594-TF0-G01	CLAMP D, FUEL PIPE	002
35	91598-S9A-A00	RUBBER, FUEL PIPE INSULATOR	001
36	93405-06016-08	BOLT-WASHER, 6X16	001
37	17720-TSA-K01	PIPE, FUEL PURGE	001

Fuel Pipe
