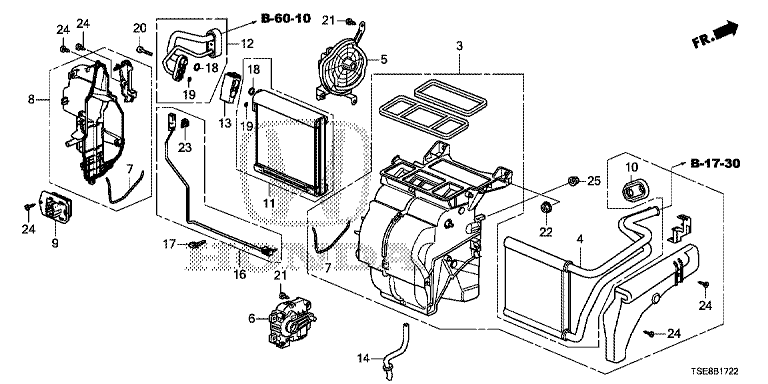

Description

Ref No.	Parts No.	Parts Name	Unit Qty
3	79106-T4V-K01	HEATER SUB ASSY.	001
4	79110-TG2-K01	CORE COMP., HEATER	001
5	79140-T4V-K01	MOTOR ASSY., MODE	001
6	79160-T4V-K01	MOTOR ASSY., AIR MIX	001
7	79191-TG1-T01	PACKING	002
8	79308-T4V-K01	JOINT SET, DUCT	001
9	79330-TY0-941	TRANSISTOR ASSY., POWER	001
10	79731-S0X-A00	GROMMET, HEATER PIPE	001
11	80215-TG2-K01	EVAPORATOR COMP.	001
12	80216-TG2-K01	PIPE ASSY.	001
13	80221-TG2-K01	VALVE ASSY., EXPANSION	001
14	80271-TG0-T00	HOSE, DRAIN	001
16	80560-TG2-K01	THERMISTOR SUB ASSY.	001
17	80566-TG1-T01	CLIP, EVAPORATOR SENSOR	001
18	80871-SN7-003	O-RING (5/8″)	002
19	80873-SN7-003	O-RING, 8MM	002
20	90110-TG2-K01	BOLT, SOCKET	002
21	90127-S84-003	SCREW, TAPPING, 4X16	005
22	90321-SV4-003	NUT-WASHER, 6MM (PAINT CUTTING)	002
23	91580-SM4-003	CLIP, COUPLER (ORANGE)	001
24	93913-14420	SCREW, TAPPING, 4X16 (PO)	018
25	94071-08080	NUT-WASHER, 8MM	001

Heater Unit
