Description

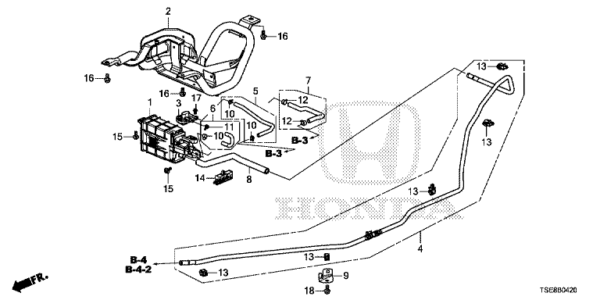

B-4-20 CANISTER
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 17300-TF0-G02 | CANISTER ASSY. | 001 | |
| 2 | 17358-TRD-P00 | BRACKET, CANISTER | 001 | |
| 3 | 17371-SLJ-013 | VALVE, TWO WAY | 001 | |
| 4 | 17372-TRD-P01 | TUBE, FUEL DRAIN | 001 | |
| 5 | 17721-TRD-P00 | TUBE ASSY. C, FUEL VENT | 001 | |
| 6 | 17722-TF0-000 | TUBE ASSY. C, FUEL VENT | 001 | |
| 7 | 17725-TRD-P00 | TUBE A, FUEL PURGE | 001 | |
| 8 | 17748-TRD-P00 | TUBE E, FUEL DRAIN | 001 | |
| 9 | 17764-TSN-K00 | STAY D, FUEL PIPE | 001 | |
| 10 | 91404-SDC-000 | CLAMP, TUBE (D10) | 003 | |
| 11 | 91404-TA0-G01 | CLAMP, FUEL TUBE (D10) | 001 | |
| 12 | 91406-SAA-J00 | CLAMP, TUBE (D12) | 002 | |
| 13 | 91593-SDE-T01 | CLIP, DRAIN TUBE | 005 | |
| 14 | 91595-T4T-P01 | CLAMP E, FUEL TUBE | 001 | |
| 15 | 93405-06020-08 | BOLT-WASHER, 6X20 | 002 | |
| 16 | 93407-08020-04 | BOLT-WASHER, 8X20 | 003 | |
| 17 | 93891-06012-08 | SCREW-WASHER, 6X12 | 001 | |
| 18 | 93407-08020-08 | BOLT-WASHER, 8X20 | 001 |
