Description

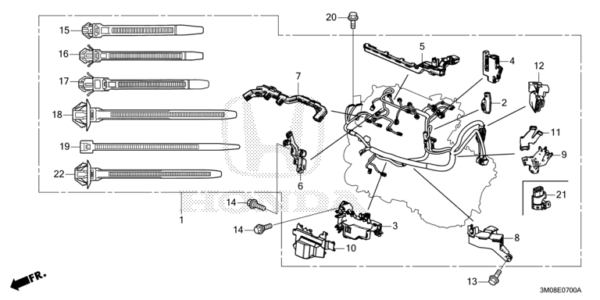

E-7 ENGINE WIRE HARNESS
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 32110-6HA-J70 | HARNESS, ENGINE WIRE | WIRE HARNESS | 001 |
| 2 | 32118-5A2-A01 | COVER, COUPLER (R.) (WPC 6P 090 F) | 001 | |
| 3 | 32121-5R0-000 | HOLDER, FR. ENGINE HARNESS BLOCK LOWER | 001 | |
| 4 | 32122-5P6-000 | HOLDER, L. ENGINE HARNESS HEAD | 001 | |
| 5 | 32123-6X0-000 | HOLDER, ENGINE WIRE HARNESS HEAD UPPER | 001 | |
| 6 | 32125-6X0-000 | HOLDER, RR. ENGINE WIRE HARNESS CHAIN CASE | 001 | |
| 7 | 32126-5R0-000 | HOLDER, ENGINE HARNESS INJECTOR | 001 | |
| 8 | 32127-6X0-J70 | HOLDER, ENGINE WIRE HARNESS MISSION UPPER | 001 | |
| 9 | 32130-6X0-000 | HOLDER, ENGINE HARNESS BATTERY LOWER | 001 | |
| 10 | 32131-5R0-000 | HOLDER, FR. ENGINE HARNESS BLOCK UPPER | 001 | |
| 11 | 32132-6X0-000 | HOLDER, ENGINE HARNESS BATTERY UPPER | 001 | |
| 12 | 32136-6X0-J00 | HOLDER, ENGINE HARNESS | 001 | |
| 13 | 95701-06014-08 | BOLT, FLANGE, 6X14 | 001 | |
| 14 | 90051-RGA-003 | BOLT, SPECIAL, 6X20.8 | 002 | |
| 15 | 91506-RTA-003 | CLIP A, HARNESS BAND (DARK VIOLET) (129.4MM) | 003 | |
| 16 | 91507-RTA-003 | CLIP B, HARNESS BAND (DARK GREEN) (129.4MM) | 003 | |
| 17 | 91509-RRA-003 | CLIP D, WIRE HARNESS (BLACK) (135.4MM) | 001 | |
| 18 | 91542-SNA-003 | CLIP, HARNESS BAND (DARK BLUE) (164.5MM) | 001 | |
| 19 | 91551-PNA-003 | BAND, WIRE HARNESS (BLACK) (172MM) | 001 | |
| 20 | 95701-06014-08 | BOLT, FLANGE, 6X14 | 002 |
