Description

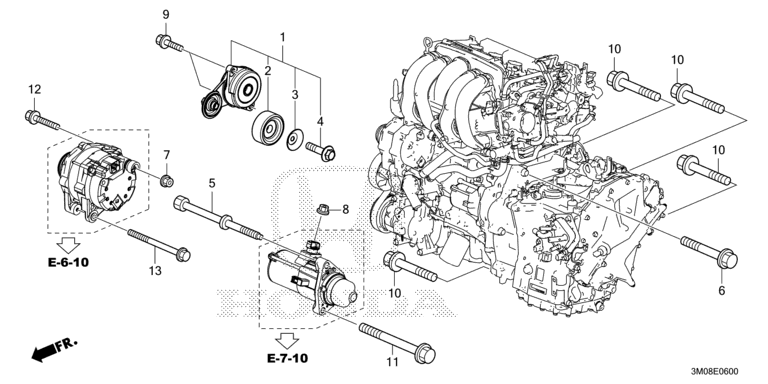

E-6 AUTO TENSIONER
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 31170-5KK-003 | TENSIONER ASSY., AUTO | Drive Belt Auto-Tensioner | 001 |
| 2 | 31180-5R0-003 | PULLEY COMP., IDLER | Drive Belt Auto-Tensioner Pulley | 001 |
| 3 | 31185-5R0-003 | COVER, BEARING | 001 | |
| 4 | 90002-5R0-003 | BOLT, SPECIAL, 10X30 | 001 | |
| 5 | 90027-PND-A00 | BOLT, SPECIAL, 10X50 | 001 | |
| 6 | 90050-PG7-000 | BOLT, FLANGE, 12X65 | 001 | |
| 7 | 94050-06080 | NUT, FLANGE, 6MM | 001 | |
| 8 | 94070-08080 | NUT-WASHER, 8MM | 001 | |
| 9 | 95701-08025-08 | BOLT, FLANGE, 8X25 | 002 | |
| 10 | 95701-12060-08 | BOLT, FLANGE, 12X60 | 004 | |
| 11 | 95701-12095-08 | BOLT, FLANGE, 12X95 | 001 | |
| 12 | 95801-08040-08 | BOLT, FLANGE, 8X40 | 001 | |
| 13 | 95801-08070-08 | BOLT, FLANGE, 8X70 | 001 |
