Description

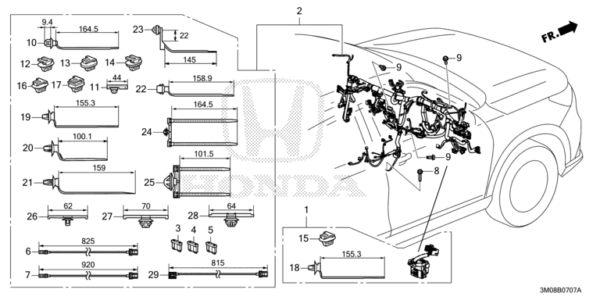

B-7-7 WIRE HARNESS (2) (RH)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 32115-3M0-T00 | SUB CORD, SWITCH | 001 | |
| 2 | 32117-3N7-P10 | HARNESS, INSTRUMENT WIRE | DASHBOARD WIRE HARNESS/DASHBOARD WIRE HARNESS | 001 |
| 8 | 90137-TVA-C01 | BOLT, EARTH, 6X26 | Earth Bolt (Floor) | 001 |
| 9 | 90148-SE0-003 | BOLT, EARTH, 6X16 (WASHER 12.5MM) (ZN) | 003 | |
| 10 | 91507-SNA-003 | CLIP, HARNESS BAND (BROWN) (164.5MM) | 002 | |
| 12 | 91533-STK-003 | CLIP, COUPLER (NATURAL) | 003 | |
| 13 | 91534-SHJ-003 | CLIP, COUPLER (DARK GRAY) (SEAL) | 001 | |
| 15 | 91534-SWA-003 | CLIP, COUPLER (DARK GRAY) | 001 | |
| 16 | 91534-SWA-003 | CLIP, COUPLER (DARK GRAY) | 001 | |
| 17 | 91536-STK-003 | CLIP, RELAY HOLDER (NATURAL) | 001 | |
| 18 | 91540-STK-003 | CLIP, HARNESS BAND (BLACK) (155.3MM) | 001 | |
| 19 | 91540-STK-003 | CLIP, HARNESS BAND (BLACK) (155.3MM) | N | |
| 20 | 91540-TA0-003 | CLIP, HARNESS BAND (NATURAL) (100.1MM) | N | |
| 21 | 91540-TAA-003 | CLIP, HARNESS BAND (BLACK) (159MM) | 008 | |
| 22 | 91542-SWY-003 | CLIP, HARNESS BAND (BLACK) (158.9MM) | 001 | |
| 23 | 91542-TF0-003 | BAND, HARNESS OFFSET (20) (DARK BLUE) (145MM) | 002 | |
| 24 | 91547-T2A-003 | CLIP, BAND HARNESS (40) (BLACK) (164.5MM) | 004 | |
| 25 | 91548-T2A-003 | CLIP, BAND HARNESS (18) (BLACK) (101.5MM) | 001 | |
| 26 | 91550-T0A-003 | CLIP, WIRE HARNESS (BLACK) (62MM) | 003 | |
| 27 | 91550-TA0-003 | CLIP, WIRE HARNESS (NATURAL) (70MM) | 001 | |
| 28 | 91553-TDK-003 | CLIP, OFFSET (30) (NATURAL) (64MM) | 001 |
