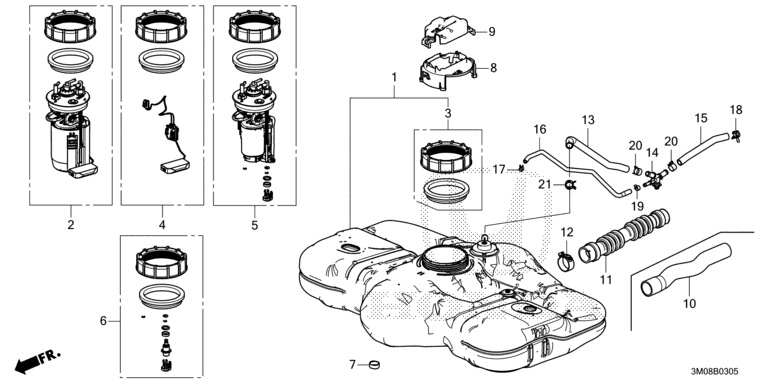

B-3-5 FUEL TANK
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 17044-T5S-T00 | TANK COMP., FUEL | Fuel Tank Assembly/Fuel Tank | 001 |
| 2 | 17045-T5A-010 | MODULE ASSY., FUEL PUMP | Fuel Tank Unit | 001 |
| 3 | 17046-TG0-000 | NUT & PACKING SET, FUEL LOCK | 001 | |
| 4 | 17047-T5A-010 | METER COMP. | Fuel Level Sensor (Fuel Gauge Sending Unit) | 001 |
| 5 | 17048-T5A-000 | STRAINER SET, FUEL | Fuel Filter | 001 |
| 6 | 17052-T5A-000 | REGULATOR SET, PRESSURE | 001 | |
| 7 | 17510-T5A-000 | CUSHION, TANK LOWER CLIP | 002 | |
| 8 | 17611-T12-T01 | HOLDER, LOCK NUT | Holder | 001 |
| 9 | 17612-T12-T00 | COVER, FUEL PUMP MODULE | Cover | 001 |
| 10 | 17651-T5A-003 | TUBE, FILLER NECK | Filler Neck Tube | 001 |
| 12 | 17652-TF0-003 | CLIP, FILLER TUBE (39MM) | 001 | |
| 13 | 17653-T5A-003 | TUBE A, BREATHER | Breather Tube A | 001 |
| 14 | 17654-T5A-003 | JOINT, SUCTION | Suction Joint | 001 |
| 15 | 17655-T5A-003 | TUBE B, BREATHER | Breather Tube B | 001 |
| 16 | 17656-T5A-003 | TUBE, SUCTION | Suction Tube | 001 |
| 17 | 91404-SDC-000 | CLAMP, TUBE (D10) | 001 | |
| 18 | 91415-SZ3-003 | CLAMP, FUEL TUBE (D17.0) | 001 | |
| 19 | 91414-SEL-003 | CLAMP, TUBE (D11.5) | 001 | |
| 20 | 91415-SZ3-003 | CLAMP, FUEL TUBE (D17.0) | 002 | |
| 21 | 91417-SEL-003 | CLAMP, FUEL TUBE (D20) (TOPY FASTENERS) | 001 |
