Description

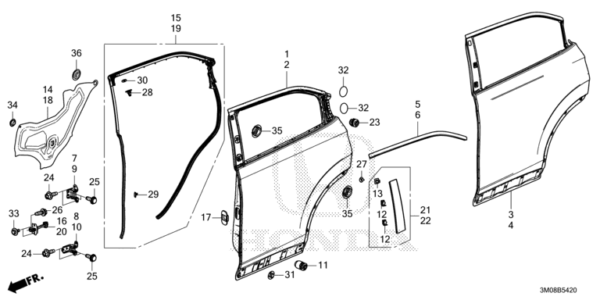

B-54-20 REAR DOOR PANELS
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 67510-3M1-T00ZZ | PANEL COMP., R. RR. DOOR | Rear Door | 001 |
| 2 | 67550-3M1-T00ZZ | PANEL COMP., L. RR. DOOR | Rear Door | 001 |
| 3 | 67611-3M1-T00ZZ | SKIN, R. RR. DOOR | 001 | |
| 4 | 67651-3M1-T00ZZ | SKIN, L. RR. DOOR | 001 | |
| 5 | 67825-3M0-J01 | TAPE, R. RR. DOOR SASH ROOF | Rear Door Sash Roof Tape | 001 |
| 6 | 67865-3M0-J01 | TAPE, L. RR. DOOR SASH ROOF | Rear Door Sash Roof Tape | 001 |
| 7 | 67910-TEH-T01ZZ | HINGE, R. RR. DOOR UPPER | Rear Door Upper Hinge | 001 |
| 8 | 67920-TEH-T01ZZ | HINGE, R. RR. DOOR LOWER | Rear Door Lower Hinge | 001 |
| 9 | 67950-TEH-T01ZZ | HINGE, L. RR. DOOR UPPER | Rear Door Upper Hinge | 001 |
| 10 | 67960-TEH-T01ZZ | HINGE, L. RR. DOOR LOWER | Rear Door Lower Hinge | 001 |
| 11 | 72142-SM4-000 | STOPPER, DOOR | 002 | |
| 12 | 72431-TZA-J01 | CLIP, CENTER PILLAR GARNISH | 004 | |
| 13 | 72432-3M0-003 | GROMMET, SCREW, 4MM | 002 | |
| 14 | 72821-3M0-J10 | SEAL, R. RR. DOOR HOLE | Rear Door Plastic Cover/Rear Door Plastic Cover | 001 |
| 15 | 72825-3M0-J01 | SUB SEAL, R. RR. DOOR | Rear Door Weatherstrip | 001 |
| 16 | 72840-3M1-T01 | CHECKER COMP., R. RR. DOOR | Rear Door Checker | 001 |
| 17 | 72844-T7A-000 | CAP, RR. DOOR CHECK (HOLE) | Rear Door Checker Trim | 002 |
| 18 | 72861-3M0-J10 | SEAL, L. RR. DOOR HOLE | Rear Door Plastic Cover/Rear Door Plastic Cover | 001 |
| 19 | 72865-3M0-J01 | SUB SEAL, L. RR. DOOR | Rear Door Weatherstrip | 001 |
| 20 | 72880-3M1-T01 | CHECKER COMP., L. RR. DOOR | Rear Door Checker | 001 |
| 21 | 72930-3M0-J01 | GARNISH, R. RR. DOOR CENTER PILLAR | Rear Door Center Sash Outer Trim | 001 |
| 22 | 72970-3M0-J01 | GARNISH, L. RR. DOOR CENTER PILLAR | Rear Door Center Sash Outer Trim | 001 |
| 23 | 75891-SA7-000 | STOPPER, DOOR | 002 | |
| 24 | 90102-S3N-003 | BOLT, FLANGE, 8X24.5 (10.5MM) | 008 | |
| 24 | 90102-SFA-305 | BOLT, FLANGE, 8X18 (SERVICE) | (8) | |
| 25 | 90103-SLA-000 | BOLT, FLANGE, 8X22 | 008 | |
| 26 | 90141-3M0-000 | BOLT, FLANGE, 8X22 | 002 | |
| 27 | 90142-S04-000 | SCREW, TAPPING, 4X10 | 002 | |
| 28 | 90651-TP8-003 | CLIP, DOOR WEATHERSTRIP | 038 | |
| 29 | 90651-TZA-003 | CLIP, DOOR WEATHERSTRIP | 020 | |
| 30 | 90652-TY0-003 | SEAL | 008 | |
| 31 | 90810-SNA-003 | GROMMET, 10MM (SELECT) | 002 | |
| 31 | 95550-10000 | PLUG, BLIND, 10MM (SELECT) | 002 | |
| 32 | 91619-SE0-000 | SEAL, DOOR HOLE, 30MM (BLACK) | 004 | |
| 33 | 93405-06016-08 | BOLT-WASHER, 6X16 | 004 | |
| 34 | 95551-11000 | PLUG, BLIND, 11MM | 002 | |
| 35 | 90820-SNA-003 | GROMMET, 20MM (SELECT) | 004 | |
| 35 | 95551-20000 | PLUG, BLIND, 20MM (SELECT) | 004 | |
| 36 | 90825-SNA-003 | GROMMET, 25MM (SELECT) | 002 | |
| 36 | 95551-25000 | PLUG, BLIND, 25MM (SELECT) | 002 |
