Description

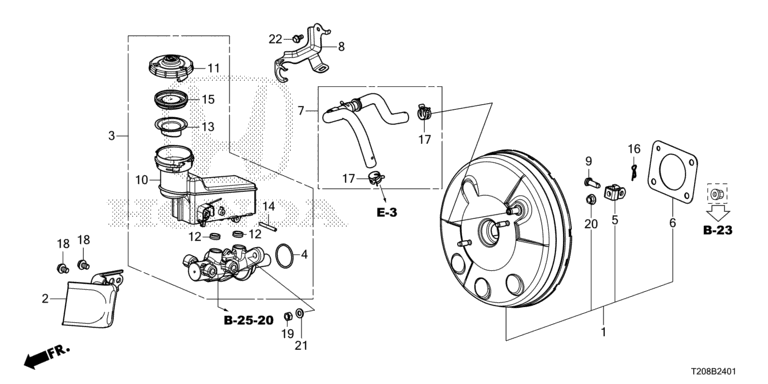

B-24-1 BRAKE MASTER CYLINDER/MASTER POWER (RH) (2)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 01469-TEA-T00 | POWER SET, MASTER (10″) | 001 | |
| 2 | 46010-T24-T00 | SLIDER COMP., BRAKE MASTER CYLINDER | Master Cylinder Slider | 001 |
| 3 | 46100-T24-T01 | CYLINDER ASSY., MASTER (CVT) | Master Cylinder | 001 |
| 4 | 46134-SNC-A01 | O-RING, 35.2X2.4 | 001 | |
| 5 | 46151-SB2-003 | YOKE, PUSH ROD (NISSIN) | Yoke | 001 |
| 6 | 46191-S2K-000 | PACKING, MASTER POWER | 001 | |
| 7 | 46402-T24-T01 | TUBE ASSY., MASTER POWER (AP2T) | Brake Booster Vacuum Hose | 001 |
| 8 | 46407-T24-T00 | STAY, MASTER POWER TUBE | 001 | |
| 9 | 46512-S70-000 | PIN, PEDAL | Yoke Pin | 001 |
| 10 | 46661-T24-T01 | RESERVOIR SET (CVT) | Reservoir | 001 |
| 11 | 46662-TEA-T01 | CAP COMP., RESERVE TANK | Reservoir Cap | 001 |
| 12 | 46665-SZW-J51 | GROMMET | Grommet | 002 |
| 13 | 46666-S2K-003 | FILTER, BRAKE RESERVOIR | Strainer | 001 |
| 14 | 46668-SZW-J51 | PIN, SPRING, 5X40 | Pin | 001 |
| 15 | 46669-S5A-003 | DIAPHRAGM | Reservoir Seal | 001 |
| 16 | 46911-S70-003 | PIN, LOCK (8MM) | Lock Pin | 001 |
| 17 | 53729-671-003 | CLAMP D, 15.5MM | 002 | |
| 18 | 90013-51B-H00 | BOLT, SPECIAL, 8X12 | 002 | |
| 19 | 94001-08080-0S | NUT, HEX., 8MM | 002 | |
| 20 | 94050-08080 | NUT, FLANGE, 8MM | 001 | |
| 21 | 94111-08800 | WASHER, SPRING, 8MM | 002 | |
| 22 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 001 |
