Description

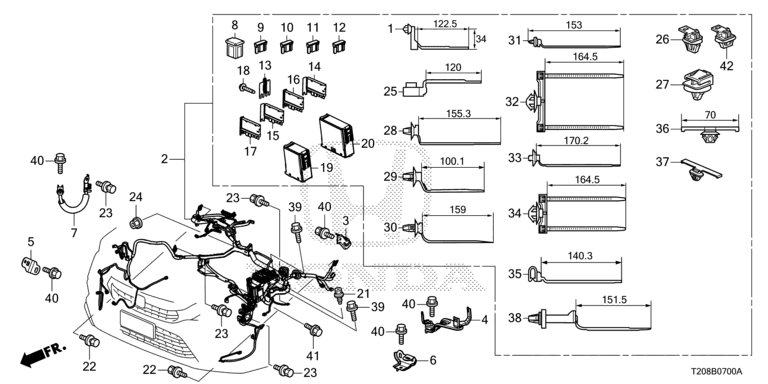

B-7 WIRE HARNESS (RH) (1)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 32132-SM4-003 | BAND, WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | 001 | |
| 2 | 32200-T29-P10 | HARNESS, ENGINE ROOM WIRE | ENGINE COMPARTMENT WIRE HARNESS/ENGINE COMPARTMENT WIRE HARNESS/ENGINE COMPARTMENT WIRE HARNESS | 001 |
| 3 | 32206-TEA-Z00 | BRACKET, VST COUPLER | Wire Harness Bracket | 001 |
| 4 | 32251-T20-A00 | BRACKET, HARNESS WIRE TO WIRE | 001 | |
| 5 | 32252-T20-A00 | BRACKET, WIRE HARNESS | 001 | |
| 6 | 32253-T20-A00 | BRACKET, FR. END WIRE HARNESS (W TO W) | 001 | |
| 7 | 32610-TBA-A10 | CABLE ASSY., SUB EARTH | ENGINE GROUND CABLE | 001 |
| 8 | 38211-TTA-J01 | FUSE, BLOCK (30A) (M-TYPE) | 002 | |
| 9 | 38221-SNA-A31 | FUSE, BLADE (7.5A) | N | |
| 10 | 38221-SNA-A41 | FUSE, BLADE (10A) | N | |
| 11 | 38221-SNA-A51 | FUSE, BLADE (15A) | N | |
| 13 | 38230-T20-A01 | FUSE, MAIN (125A) | Main Fuse | 001 |
| 14 | 38231-T20-A01 | FUSE, MULTI BLOCK (A) | Multi Fuse Block/Multi Fuse Block | 001 |
| 15 | 38231-T20-A11 | FUSE, MULTI BLOCK (A) | Multi Fuse Block/Multi Fuse Block | 001 |
| 16 | 38232-T20-A01 | FUSE, MULTI BLOCK (B) | Multi Fuse Block/Multi Fuse Block | 001 |
| 17 | 38232-T20-A11 | FUSE, MULTI BLOCK (B) | Multi Fuse Block/Multi Fuse Block | 001 |
| 18 | 38259-TYA-A00 | BOLT, MAIN FUSE, 5X27 | 002 | |
| 19 | 38280-T20-A01 | MODULE ASSY., RELAY | Relay Circuit Board | 001 |
| 20 | 38850-T20-Y02 | MODULE, SEMICONDUCTOR | Relay Control Module | 001 |
| 21 | 90114-STX-A00 | BOLT, 6X21 | 002 | |
| 22 | 90148-SE0-003 | BOLT, EARTH, 6X16 (WASHER 12.5MM) (ZN) | 002 | |
| 23 | 90149-SE0-003 | BOLT, EARTH, 6X16 | 005 | |
| 24 | 90361-SV4-003 | NUT, PAINT CUTTING, 6MM | 001 | |
| 25 | 91531-S5B-003 | BAND, HARNESS (BLACK) (120MM) | 001 | |
| 26 | 91535-TA0-003 | CLIP, COUPLER (DARK BROWN) | 003 | |
| 27 | 91537-TBA-003 | CLIP, PROTECTOR (BLACK) | 002 | |
| 28 | 91540-STK-003 | CLIP, HARNESS BAND (BLACK) (155.3MM) | 006 | |
| 29 | 91540-TA0-003 | CLIP, HARNESS BAND (NATURAL) (100.1MM) | 001 | |
| 30 | 91540-TAA-003 | CLIP, HARNESS BAND (BLACK) (159MM) | N | |
| 31 | 91545-TVA-003 | CLIP, HARNESS BAND (NATURAL) (153MM) (SEAL) | 001 | |
| 32 | 91547-T2A-003 | CLIP, BAND HARNESS (40) (BLACK) (164.5MM) | N | |
| 33 | 91548-TBA-003 | CLIP, HARNESS BAND (BLACK) (170.2MM) | 005 | |
| 34 | 91548-TY2-003 | CLIP, BAND HARNESS (40) (BLACK) (164.5MM) | N | |
| 35 | 91549-TA0-003 | CLIP, HARNESS BAND (BLACK) (140.3MM) | N | |
| 36 | 91550-TA0-003 | CLIP, WIRE HARNESS (NATURAL) (70MM) | 002 | |
| 38 | 91558-SAA-003 | CLIP, HARNESS BAND (30) (BLACK) (151.5MM) | 001 | |
| 39 | 93405-06025-08 | BOLT-WASHER, 6X25 | 002 | |
| 40 | 95701-06012-08 | BOLT, FLANGE, 6X12 | Oil Check Bolt | 005 |
| 41 | 95701-06016-08 | BOLT, FLANGE, 6X16 | Oil Check Bolt | 001 |
