Description

Ref No.	Parts No.	Parts Name	Parts Name(S/M)	Unit Qty
1	16050-T24-T00	PIPE SET, FUEL		001
2	16722-64D-U01	HOSE COMP., FUEL FEED	Fuel Feed Hose	001
3	16724-64D-U01	COVER, FUEL HOSE	Fuel Hose Cover	001
4	16725-RNA-A00	HOLDER A, FUEL CONNECTOR (WHITE)	Quick-Connect Fitting Cover	002
5	16727-PND-004	CLAMP, FUEL HOSE (BLACK)		001
6	16730-64D-U00	STAY ASSY., FUEL FEED HOSE		001
7	16922-5G0-A00	RUBBER, MOUNTING		002
8	16923-5G0-A00	COLLAR, MOUNTING		002
9	17711-S0X-A31	RETAINER (GREEN) (TOKAI)		002
10	17711-S84-004	RETAINER (WHITE) (SANOH)		001
11	17726-T24-T00	HOSE ASSY., FUEL PURGE	Fuel Purge Hose	001
12	17761-TES-H00	STAY A, FUEL PIPE		001
13	17761-TF0-G70	STAY A, FUEL PIPE		001
14	17766-T24-T00	PROTECTOR A, FUEL PIPE		001
15	90001-P7J-000	BOLT, SPECIAL, 6X25		002
16	90361-SV4-003	NUT, PAINT CUTTING, 6MM		002
17	91407-SDB-000	CLAMP, TUBE (D12.5)		002
18	91591-TA0-A01	CLAMP A, FUEL PIPE (BLACK)		001
19	91591-TED-P01	CLAMP A, FUEL PIPE (BLACK)		003
20	91592-TEA-T01	CLAMP B, FUEL PIPE (BLACK)		001
21	91594-TED-P01	CLAMP, FUEL PIPE (NATURAL)		001
22	91596-T5C-003	CLAMP B, FUEL PIPE (BLACK)		001
23	91596-TZ5-H01	CLAMP A, FUEL PIPE (BLACK)		001
24	91597-TZ5-H01	COVER, FUEL PIPE (BLACK)		001
25	91598-S5A-930	RUBBER, FUEL PIPE INSULATOR		001
26	91598-S9A-A00	RUBBER, FUEL PIPE INSULATOR		001
27	94050-06050	NUT, FLANGE, 6MM		002
28	94050-06080	NUT, FLANGE, 6MM		002
29	95701-06012-08	BOLT, FLANGE, 6X12		001

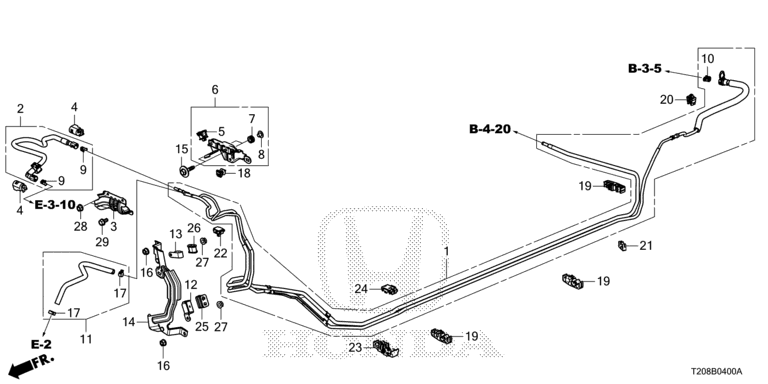

Fuel Pipe
