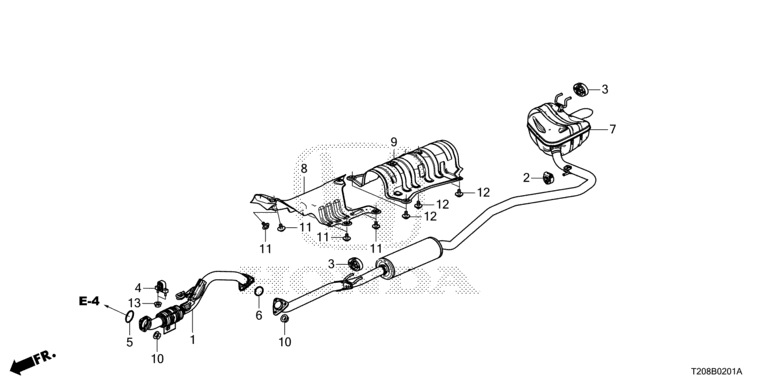

B-2-1 EXHAUST PIPE/SILENCER (RH) (2)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 18200-T24-T11 | PIPE ASSY. A, EX. | 001 | |
| 2 | 18215-TA0-A01 | RUBBER, EX. MOUNTING | Rubber Mount | 001 |
| 3 | 18215-TR0-A21 | RUBBER, EX. MOUNTING | Rubber Mount | 002 |
| 4 | 18215-TVA-A01 | RUBBER, EX. MOUNTING | Rubber Mount | 001 |
| 5 | 18302-SP0-003 | GASKET, EX. PIPE | 001 | |
| 6 | 18303-TR0-A01 | GASKET, EX. PIPE | 001 | |
| 7 | 18307-T24-T11 | SILENCER COMP., EX. | Muffler | 001 |
| 8 | 74601-T24-T00 | PLATE A, FLOOR HEAT BAFFLE | Floor Heat Baffle Plate A | 001 |
| 9 | 74611-TEG-A00 | PLATE B, FLOOR HEAT BAFFLE | Floor Heat Baffle Plate B | 001 |
| 10 | 90212-SA5-003 | NUT, SELF-LOCK, 10MM | 006 | |
| 11 | 93404-06012-05 | BOLT-WASHER, 6X12 | 006 | |
| 12 | 93404-06012-05 | BOLT-WASHER, 6X12 | 005 | |
| 13 | 94050-08050 | NUT, FLANGE, 8MM | 002 |
