Description

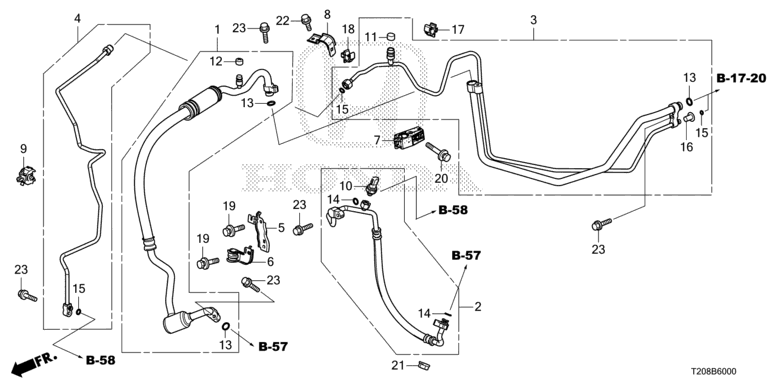

| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
| 1 | 80311-T29-R01 | HOSE COMP., SUCTION | Suction Hose | 001 |
| 2 | 80315-T29-R01 | HOSE COMP., DISCHARGE | Discharge Hose | 001 |
| 3 | 80321-T29-R01 | PIPE COMP., AIR CONDITIONER | A/C Line | 001 |
| 4 | 80341-T29-R01 | PIPE COMP., RECEIVER | Receiver Pipe | 001 |
| 5 | 80360-TVA-A00 | STAY, SUCTION PIPE CLAMP | 001 | |
| 6 | 80361-T20-A00 | CLAMP, SUCTION HOSE | A/C Line Bracket | 001 |
| 7 | 80361-TVL-T01 | CLAMP B, AIR CONDITIONER PIPE (16MM) | A/C Line Bracket | 001 |
| 8 | 80362-TGN-G00 | STAY, AIR CONDITIONER PIPE | 001 | |
| 9 | 80363-T21-A01 | CLIP, RECEIVER PIPE | 001 | |
| 10 | 80450-T2F-A01 | SENSOR ASSY., PRESSURE (SENSATA) | A/C Pressure Sensor | 001 |
| 11 | 80865-SL0-003 | CAP, VALVE (H) | 001 | |
| 12 | 80866-ST0-003 | CAP L, VALVE (NICHIRIN) | 001 | |
| 13 | 80871-ST7-000 | O-RING (5/8″) | 003 | |
| 14 | 80872-ST7-000 | O-RING (1/2″) | 002 | |
| 15 | 80873-ST7-000 | O-RING, 8MM | 003 | |
| 17 | 91548-SLE-003 | CLIP, RECEIVER PIPE | 001 | |
| 18 | 91548-SR3-003 | CLIP, 8MM | 001 | |
| 19 | 93403-06016-08 | BOLT-WASHER, 6X16 | 002 | |
| 20 | 93405-06035-08 | BOLT-WASHER, 6X35 | 001 | |
| 21 | 94050-06080 | NUT, FLANGE, 6MM | 001 | |
| 22 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 001 | |
| 23 | 95701-06025-08 | BOLT, FLANGE, 6X25 | 005 |
