Description

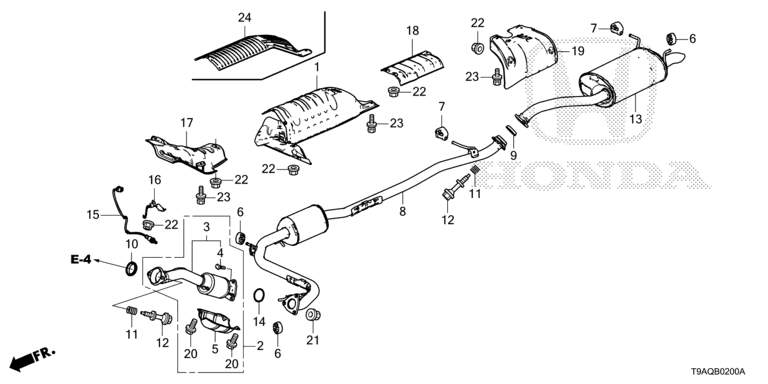

B-2 EXHAUST PIPE/SILENCER
| Ref No. | Parts No. | Parts Name | Unit Qty |
|---|---|---|---|
| 2 | 18150-55A-K00 | CONVERTER ASSY. | 001 |
| 4 | 18176-5K0-003 | BOLT, CONVERTER (MEIRA) | 003 |
| 5 | 18181-55A-Z00 | COVER COMP., LOWER | 001 |
| 6 | 18215-TF0-003 | RUBBER, EX. MOUNTING | 003 |
| 7 | 18215-TF0-911 | RUBBER, EX. MOUNTING | 002 |
| 8 | 18220-3S7-T02 | PIPE, EX. (B) | 001 |
| 9 | 18229-SNA-A01 | GASKET, EX. FLEXIBLE | 001 |
| 10 | 18229-TDK-003 | GASKET, EX. FLEXIBLE | 001 |
| 11 | 18230-SA0-930 | SPRING, FLEXIBLE JOINT | 004 |
| 12 | 18231-TR0-A00 | BOLT B, FLEXIBLE JOINT | 004 |
| 13 | 18307-3S7-T02 | SILENCER COMP., EX. | 001 |
| 14 | 18393-SH3-S00 | GASKET, PRE-CHAMBER (52.5MM-53.5MM) | 001 |
| 15 | 36532-55A-Z01 | SENSOR, RR. OXYGEN | 001 |
| 16 | 36533-55A-Z00 | CLAMP COMP., OXYGEN SENSOR | 001 |
| 17 | 74600-T5A-000 | PLATE COMP. A, FLOOR HEAT BAFFLE | 001 |
| 18 | 74603-T9A-T00 | PLATE, FLOOR HEAT BAFFLE (C) | 001 |
| 19 | 74605-T9C-K00 | PLATE, SILENCER BAFFLE | 001 |
| 20 | 90023-PR7-A01 | BOLT, FLANGE, 6X12 (IWATA BOLT) | 004 |
| 21 | 90212-SA5-003 | NUT, SELF-LOCK, 10MM | 003 |
| 22 | 90301-SV7-000 | NUT, PAINT CUTTING, 6MM | 008 |
| 23 | 93404-06012-05 | BOLT-WASHER, 6X12 | 005 |
| 24 | 74602-T9C-K00 | PLATE, FLOOR HEAT BAFFLE (B) | 001 |
