Description

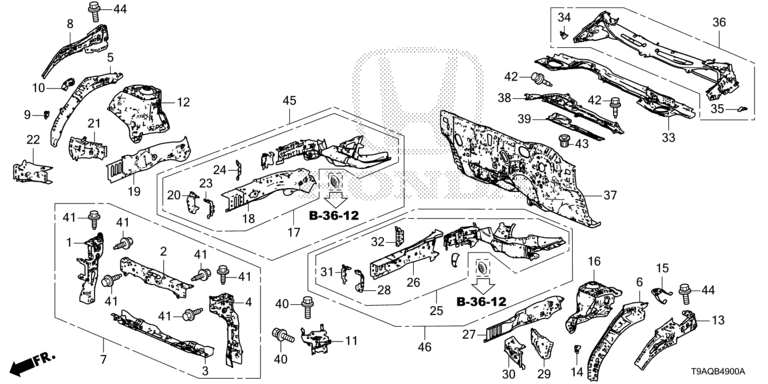

B-49 FRONT BULKHEAD/DASHBOARD
| Ref No. | Parts No. | Parts Name | Unit Qty |
|---|---|---|---|
| 1 | 04601-T9P-J00ZZ | STAY SET, R. FR. BULKHEAD SIDE | 001 |
| 2 | 04602-T9A-T10ZZ | FRAME SET, FR. BULKHEAD UPPER | 001 |
| 3 | 04603-3S6-T00ZZ | CROSSMEMBER SET, FR. BULKHEAD LOWER | 001 |
| 4 | 04611-T9A-T00ZZ | STAY SET, L. FR. BULKHEAD SIDE | 001 |
| 5 | 04674-T9A-T00ZZ | EXTENSION SET, R. FR. SHOCK ABSORBER | 001 |
| 6 | 04684-T9A-T00ZZ | EXTENSION SET, L. FR. SHOCK ABSORBER | 001 |
| 7 | 60400-3S6-T00ZZ | BULKHEAD COMP., FR. | 001 |
| 8 | 60610-T9A-T00ZZ | MEMBER COMP., R. FR. WHEELHOUSE UPPER | 001 |
| 9 | 60619-T9A-T00ZZ | BRACKET, R. FR. FENDER (B) | 001 |
| 10 | 60623-T9A-T00ZZ | BRACKET, R. FR. FENDER (A) | 001 |
| 11 | 60630-T9A-T00ZZ | BASE COMP., BATTERY SETTING | 001 |
| 12 | 60650-T9A-315ZZ | HOUSING SET, R. FR. SHOCK ABSORBER | 001 |
| 13 | 60710-T9A-T00ZZ | MEMBER COMP., L. FR. WHEELHOUSE UPPER | 001 |
| 14 | 60719-T9A-T00ZZ | BRACKET, L. FR. FENDER (B) | 001 |
| 15 | 60723-T9A-T00ZZ | BRACKET, L. FR. FENDER (A) | 001 |
| 16 | 60750-T9A-315ZZ | HOUSING SET, L. FR. SHOCK ABSORBER | 001 |
| 17 | 60810-3S6-T00ZZ | FRAME COMP., R. FR. SIDE | 001 |
| 18 | 60811-T9A-T00ZZ | FRAME, R. FR. SIDE | 001 |
| 19 | 60812-T9A-T00ZZ | PLATE, R. FR. SIDE BACK | 001 |
| 20 | 60843-T9A-T00ZZ | BRACKET, R. FR. BUMPER BEAM EXTENSION | 001 |
| 21 | 60844-T9A-T00ZZ | PLATE, R. SIDE FRAME GUSSET | 001 |
| 22 | 60845-T9A-T00ZZ | GUSSET, R. FR. SIDE FRAME | 001 |
| 23 | 60846-T9A-T00ZZ | PATCH, R. BUMPER BEAM | 001 |
| 24 | 60848-T9A-T00ZZ | SUPPORT, R. FR. BULKHEAD | 001 |
| 25 | 60910-3S6-T00ZZ | FRAME COMP., L. FR. SIDE | 001 |
| 26 | 60911-T9A-T00ZZ | FRAME, L. FR. SIDE | 001 |
| 27 | 60912-T9A-T00ZZ | PLATE, L. FR. SIDE BACK | 001 |
| 28 | 60943-T9A-T00ZZ | BRACKET, L. FR. BUMPER BEAM EXTENSION | 001 |
| 29 | 60944-T9A-T00ZZ | PLATE, L. SIDE FRAME GUSSET | 001 |
| 30 | 60945-T9A-T00ZZ | GUSSET, L. FR. SIDE FRAME | 001 |
| 31 | 60946-T9A-T00ZZ | PATCH, L. BUMPER BEAM | 001 |
| 32 | 60948-T9A-T00ZZ | SUPPORT, L. FR. BULKHEAD | 001 |
| 33 | 61100-T9A-T00ZZ | DASHBOARD COMP., UPPER | 001 |
| 34 | 61123-T9A-T00ZZ | BRACKET, R. FR. FENDER | 001 |
| 35 | 61128-T9A-T00ZZ | BRACKET, L. FR. FENDER | 001 |
| 36 | 61140-T9A-T00ZZ | FRAME COMP., WINDSHIELD LOWER | 001 |
| 37 | 61500-T9A-T00ZZ | DASHBOARD COMP., LOWER | 001 |
| 38 | 74290-3S6-T00 | LID ASSY., DASHBOARD UPPER | 001 |
| 39 | 74293-T9A-T00 | INSULATOR, DASHBOARD UPPER LID | 001 |
| 40 | 90105-SV1-000 | BOLT-WASHER, 8X20 | 004 |
| 41 | 90108-S0A-003 | BOLT, FLANGE, 6X15 | 006 |
| 42 | 90122-TF0-000 | BOLT-WASHER, 6X14 (WITH GUIDE) | 005 |
| 43 | 91517-SE0-003 | CLIP, LOWER OUTER DASHBOARD INSULATOR | 004 |
| 44 | 93404-08016-08 | BOLT-WASHER, 8X16 | 004 |
